Tomcat 连接器 Connector（Nio）（doing）

———— 9.0.13
words: 182    views:    time: 1min
Tomcat
I/O

….

Nio

bind()

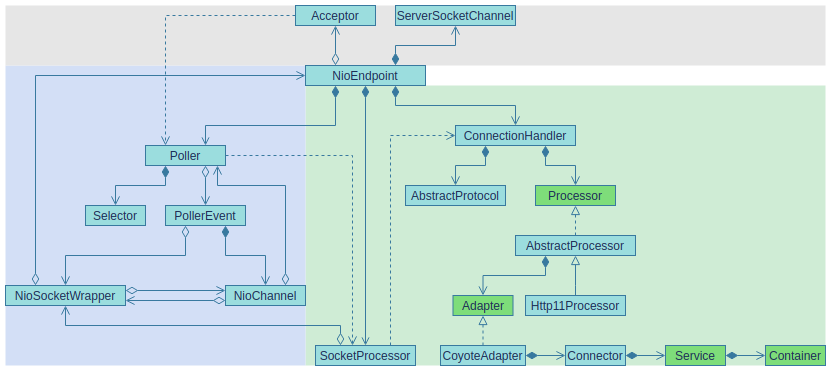

org.apache.tomcat.util.net.NioEndpoint
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
private volatile ServerSocketChannel serverSock = null;

private NioSelectorPool selectorPool = new NioSelectorPool();

@Override
public void bind() throws Exception {
    initServerSocket();
    setStopLatch(new CountDownLatch(1));

    initialiseSsl(); // Initialize SSL if needed
    selectorPool.open(getName());
}

protected void initServerSocket() throws Exception {
    if (!getUseInheritedChannel()) {
        serverSock = ServerSocketChannel.open();
        socketProperties.setProperties(serverSock.socket());
        InetSocketAddress addr = new InetSocketAddress(getAddress(), getPortWithOffset());
        serverSock.socket().bind(addr,getAcceptCount());
    } else {
        // Retrieve the channel provided by the OS
        Channel ic = System.inheritedChannel();
        if (ic instanceof ServerSocketChannel) {
            serverSock = (ServerSocketChannel) ic;
        }
        if (serverSock == null) {
            throw new IllegalArgumentException(sm.getString("endpoint.init.bind.inherited"));
        }
    }
    serverSock.configureBlocking(true); //mimic APR behavior
}
org.apache.tomcat.util.net.NioSelectorPool
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
protected volatile Selector sharedSelector;

protected NioBlockingSelector blockingSelector;

public void open(String name) throws IOException {
    enabled = true;
    getSharedSelector();
    if (shared) {
        blockingSelector = new NioBlockingSelector();
        blockingSelector.open(name, getSharedSelector());
    }
}

protected Selector getSharedSelector() throws IOException {
    if (shared && sharedSelector == null) {
        synchronized (NioSelectorPool.class) {
            if (sharedSelector == null) {
                sharedSelector = Selector.open();
            }
        }
    }
    return  sharedSelector;
}

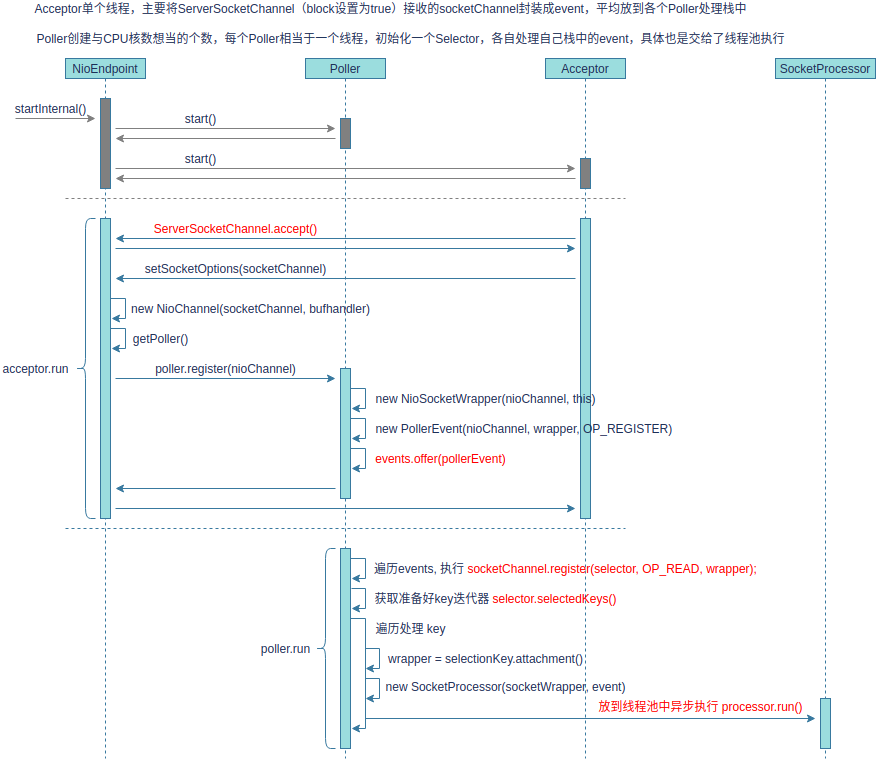

startInternal()


参考：

  1. https://zhuanlan.zhihu.com/p/376074271
