《spring源码深度解析》spring Aop

———— 5.1.3.RELEASE
words: 6.3k    views:    time: 33min
spring源码深度解析
Aop

使用面向对象（OOP）编程有一些弊端，当需要为多个不具有继承关系的对象引入同一个公共行为时（例如日志、安全检测等），只能在每个对象里引用公共行为，这样程序中就产生了大量重复的代码，不便于维护，所以可以使用面向切面（AOP）编程作为一个补充，Aop是横向的而OOP是纵向的。

示例 @Aspect

spring2.0以后，可以使用@Aspect非常容易地定义一个切面，不需要实现任何接口。@Aspect标注的pojo用来定义一个包含切点信息和增强横切逻辑的切面，然后spring会将这个切面织入匹配的目标bean中，而Aspect表达式具有强大的描述能力，下面写一个示例切面：用来给所有package下面所有名称以Bean结尾的类中所有方法打印一个输入输出日志

:pom.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-core</artifactId>
    <version>5.1.3.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-beans</artifactId>
    <version>5.1.3.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.1.3.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjweaver</artifactId>
    <version>1.9.6</version>
</dependency>
:TestBean.java
1
2
3
4
5
6
7
8
9
10
11
12
public class TestBean {

    public int calculate(int i, int j){
        //this.valid(i, j);
        ((TestBean)AopContext.currentProxy()).valid(i, j);
        return i / j;
	}

    public void valid(int i, int j){
        Assert.isTrue(i > 0 && j > 0, "");
    }
}
:LogAspect
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
@Aspect
public class LogAspect {

    private ThreadLocal<Long> localTime = new ThreadLocal<>();

    @Pointcut("execution(* *..*Bean.*(..))")
    public void point(){

    }

    @Before("point()")
    public void before(JoinPoint point){
        localTime.set(System.currentTimeMillis());
        String method = point.getSignature().getName();
        System.out.println("aspect before: " + method + Arrays.asList(point.getArgs()));
    }

    @AfterReturning(pointcut = "point()", returning = "result")
    public void after(Object result){
        long now = System.currentTimeMillis();
        System.out.println("aspect: after: result=" + result + ", cost=" + (now - localTime.get()) + "ms");
    }
}
:bean.xml mark:4,7,8,10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans.xsd
                        http://www.springframework.org/schema/aop
                        http://www.springframework.org/schema/aop/spring-aop.xsd">

    <aop:aspectj-autoproxy proxy-target-class="false" expose-proxy="true"/>

    <bean id="testBean" class="test.aop.TestBean" />

    <bean id="logAspect" class="test.aop.LogAspect" />
</beans>
:App.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
public class App {
    public static void main( String[] args ){
        ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
        TestBean test = (TestBean)context.getBean("testBean");
        System.out.println(test.getClass());
        test.calculate(4, 2);
    }
}

class test.aop.TestBean$$EnhancerBySpringCGLIB$$385f50d3
aspect before: calculate[4, 2]
aspect before: valid[4, 2]
aspect: after: result=null, cost=0ms
aspect: after: result=2, cost=0ms

实现

其实从上一篇spring. 应用上下文（ApplicationContext），最后的示例中已经能看到，可以利用接口BeanPostProcessor，借助动态代理来对目标bean进行增强，而目标bean可以使用注解进行简单的标识即可。

下面来看下spring中的Aop是如何实现的，从示例中可以看到要使用Aop标签，需要添加对应的Namespace，那么一定存在对应的解析器[参考之前的spring. BeanDefinition解析（自定义标签）]，这里很容易地通过其标签确认其解析实现，其实这里的实现就是注册了一个AnnotationAwareAspectJAutoProxyCreator，如下：

:org.springframework.aop.config.NamespaceHandlerSupport mark:6
1
2
3
4
5
6
7
8
9
10
11
12
public class AopNamespaceHandler extends NamespaceHandlerSupport {
    @Override
    public void init() {
        // In 2.0 XSD as well as in 2.1 XSD.
        registerBeanDefinitionParser("config", new ConfigBeanDefinitionParser());
        registerBeanDefinitionParser("aspectj-autoproxy", new AspectJAutoProxyBeanDefinitionParser());
        registerBeanDefinitionDecorator("scoped-proxy", new ScopedProxyBeanDefinitionDecorator());

        // Only in 2.0 XSD: moved to context namespace as of 2.1
        registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
    }
}
:org.springframework.aop.config.AspectJAutoProxyBeanDefinitionParser mark:7
1
2
3
4
5
6
7
8
9
10
11
12
13
class AspectJAutoProxyBeanDefinitionParser implements BeanDefinitionParser {

    @Override
    @Nullable
    public BeanDefinition parse(Element element, ParserContext parserContext) {
        // 注册AspectJAnnotationAutoProxyCreator
        AopNamespaceUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(parserContext, element);
        extendBeanDefinition(element, parserContext); // 对于注解中子类的处理
        return null;
    }

    ...
}
:org.springframework.aop.config.AopNamespaceUtils
1
2
3
4
5
6
7
8
9
10
11
12
public static void registerAspectJAnnotationAutoProxyCreatorIfNecessary(
        ParserContext parserContext, Element sourceElement) {
    // 注册AspectJAnnotationAutoProxyCreator的BeanDefinition
    BeanDefinition beanDefinition = AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(
            parserContext.getRegistry(), parserContext.extractSource(sourceElement));

    // 对于proxy-target-class以及expose-proxy的处理
    useClassProxyingIfNecessary(parserContext.getRegistry(), sourceElement);

    // 注册后事件通知
    registerComponentIfNecessary(beanDefinition, parserContext);
}

首先创建和注册BeanDefinition，这里使用的class为AnnotationAwareAspectJAutoProxyCreator

:org.springframework.aop.config.AopConfigUtils mark:3,29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
        BeanDefinitionRegistry registry, @Nullable Object source) {
    return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
}

@Nullable
private static BeanDefinition registerOrEscalateApcAsRequired(
        Class<?> cls, BeanDefinitionRegistry registry, @Nullable Object source) {
    Assert.notNull(registry, "BeanDefinitionRegistry must not be null");

    // 如果已经存在了自动代理创建器定义 并且与现在的一致，那么根据优先级决定使用哪个
    if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
        BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
        if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
            int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
            int requiredPriority = findPriorityForClass(cls);
            if (currentPriority < requiredPriority) {
                apcDefinition.setBeanClassName(cls.getName()); // 改掉class
            }
        }
        return null;
    }

    // 注册新建的BeanDefinition
    RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
    beanDefinition.setSource(source);
    beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
    beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
    registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
    return beanDefinition;
}

另外，处理下proxy-target-class以及expose-proxy，其实就是在BeanDefinition的propertyValues中添加了两个属性

  • proxy-target-class

默认false，即默认使用JDK代理，如果目标类没有实现任何接口则使用CGLIB代理，如果希望强制使用CGLIB代理，设置为true即可。但是由于CGLIB代理基于继承的方式，因此需要注意下其不能代理final方法。

  • expose-proxy

有时候目标类的内部会进行自我调用，而导致被嵌套调用的方法不会被代理，对于这种情况可以将expose-proxy设置为true，并指定获取代理对象即可，如示例中所示。

AnnotationAwareAspectJAutoProxyCreator

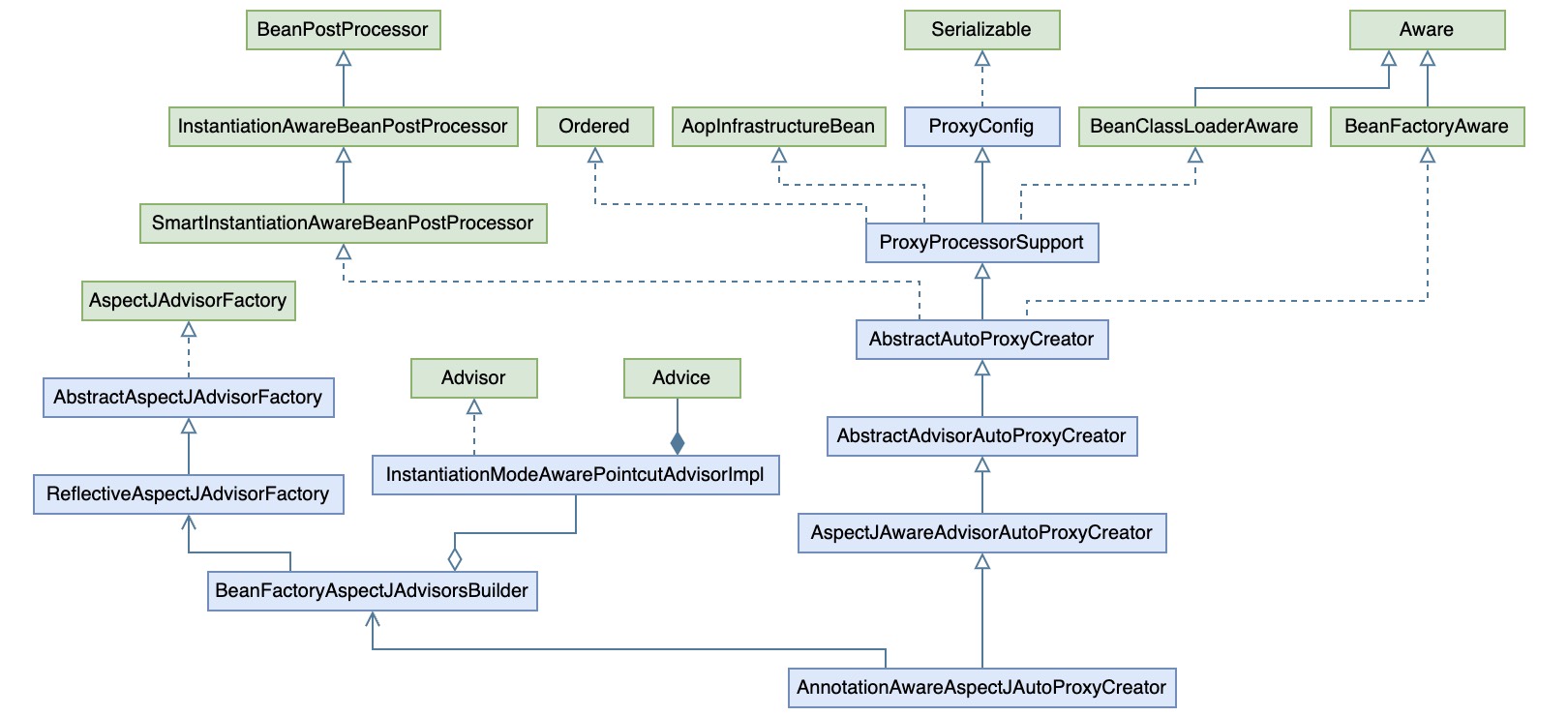

从AnnotationAwareAspectJAutoProxyCreator的继承结构可以看到它实现了接口BeanPostProcessor，所以就下面就以postProcessAfterInitialization作为入口进行分析，实际上它干了两件事，首先将所有的增强器封装为Advisor，然后逐个与目标bean进行匹配，如果匹配成功就创建对应的Proxy

:org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator mark:6,25,28,29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
    if (bean != null) {
        Object cacheKey = getCacheKey(bean.getClass(), beanName);
        // 如果在before中已经根据TargetSource创建过，这里就不再处理了
        if (!this.earlyProxyReferences.contains(cacheKey)) {
            return wrapIfNecessary(bean, beanName, cacheKey);
        }
    }
    return bean;
}

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
    if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) { // 已经处理过
        return bean;
    }
    if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) { // 不需要代理
        return bean;
    }
    if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) { // 跳过特定的接口
        this.advisedBeans.put(cacheKey, Boolean.FALSE);
        return bean;
    }

    // Create proxy if we have advice.
    Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
    if (specificInterceptors != DO_NOT_PROXY) {
        this.advisedBeans.put(cacheKey, Boolean.TRUE);
        Object proxy = createProxy(
                bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
        this.proxyTypes.put(cacheKey, proxy.getClass());
        return proxy;
    }

    this.advisedBeans.put(cacheKey, Boolean.FALSE);
    return bean;
}

getAdvicesAndAdvisorsForBean

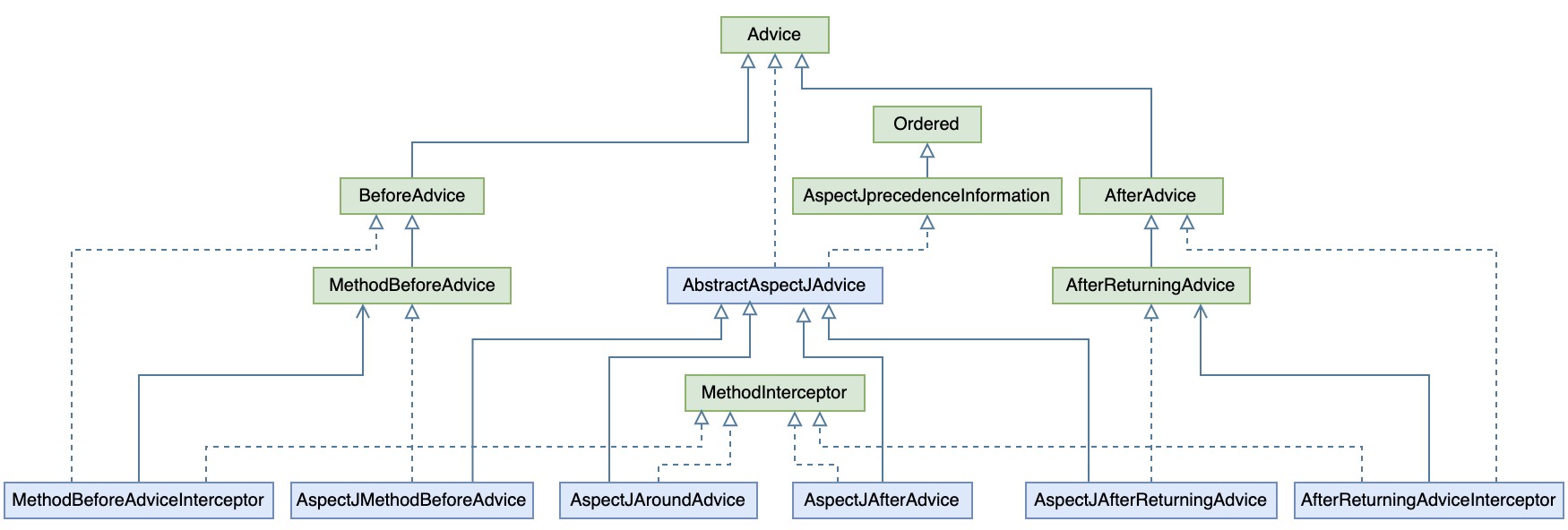

对于Advisor的创建和维护其实委托给了BeanFactoryAspectJAdvisorsBuilder，而Advisor负责根据不同的类型创建和维护真正的Advice，如果画出它们的类图基本上就能想到下面是如何实现的了

:org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator mark:4,12,13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
protected Object[] getAdvicesAndAdvisorsForBean(
        Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {

    List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
    if (advisors.isEmpty()) {
        return DO_NOT_PROXY;
    }
    return advisors.toArray();
}

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
    List<Advisor> candidateAdvisors = findCandidateAdvisors();
    List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
    extendAdvisors(eligibleAdvisors);
    if (!eligibleAdvisors.isEmpty()) {
        eligibleAdvisors = sortAdvisors(eligibleAdvisors);
    }
    return eligibleAdvisors;
}
findCandidateAdvisors

BeanFactoryAspectJAdvisorsBuilder首先从BeanFactory中获取所有标注了@Aspect的bean，然后进行遍历并逐个交给ReflectiveAspectJAdvisorFactory进行Advisor创建

:org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator mark:6
1
2
3
4
5
6
7
8
9
protected List<Advisor> findCandidateAdvisors() {
    // 从BeanFactory中获取所有已经存在的Advisor类型的bean
    List<Advisor> advisors = super.findCandidateAdvisors();
    // 根据所有标记了@Aspect的bean创建Advisor
    if (this.aspectJAdvisorsBuilder != null) {
        advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
    }
    return advisors;
}
:org.springframework.aop.aspectj.annotation.BeanFactoryAspectJAdvisorsBuilder mark:27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
public List<Advisor> buildAspectJAdvisors() {
    List<String> aspectNames = this.aspectBeanNames;

    if (aspectNames == null) {
        synchronized (this) {
            aspectNames = this.aspectBeanNames;
            if (aspectNames == null) {
                List<Advisor> advisors = new ArrayList<>();
                aspectNames = new ArrayList<>(); // 所有的beanName
                String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
                        this.beanFactory, Object.class, true, false);
                for (String beanName : beanNames) {
                    if (!isEligibleBean(beanName)) { // 规则过滤
                        continue;
                    }

                    Class<?> beanType = this.beanFactory.getType(beanName); // bean类型
                    if (beanType == null) {
                        continue;
                    }
                    if (this.advisorFactory.isAspect(beanType)) { // 如果存在@Aspect注解
                        aspectNames.add(beanName);
                        AspectMetadata amd = new AspectMetadata(beanType, beanName);
                        if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
                            MetadataAwareAspectInstanceFactory factory =
                                    new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
                            List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
                            if (this.beanFactory.isSingleton(beanName)) {
                                this.advisorsCache.put(beanName, classAdvisors);
                            }else {
                                this.aspectFactoryCache.put(beanName, factory);
                            }
                            advisors.addAll(classAdvisors);
                        }else {
                            // Per target or per this.
                            if (this.beanFactory.isSingleton(beanName)) {
                                throw new IllegalArgumentException("Bean with name '" + beanName +
                                        "' is a singleton, but aspect instantiation model is not singleton");
                            }
                            MetadataAwareAspectInstanceFactory factory =
                                    new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
                            this.aspectFactoryCache.put(beanName, factory);
                            advisors.addAll(this.advisorFactory.getAdvisors(factory));
                        }
                    }
                }
                this.aspectBeanNames = aspectNames;
                return advisors;
            }
        }
    }

    if (aspectNames.isEmpty()) {
        return Collections.emptyList();
    }
    List<Advisor> advisors = new ArrayList<>();
    for (String aspectName : aspectNames) {
        List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
        if (cachedAdvisors != null) {
            advisors.addAll(cachedAdvisors);
        }else {
            MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
            advisors.addAll(this.advisorFactory.getAdvisors(factory));
        }
    }
    return advisors;
}

ReflectiveAspectJAdvisorFactory拿到标注了@Aspect的类后，再遍历其方法（忽略标识了@Pointcut的方法），并将对应的方法、方法注解中的信息以及aspectClass封装成AspectJExpressionPointcut，用来创建Advisor的实例InstantiationModelAwarePointcutAdvisorImpl

:org.springframework.aop.aspectj.annotation.ReflectiveAspectJAdvisorFactory mark:13,53,54,59,60,65,66
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
    Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
    String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
    validate(aspectClass);

    // We need to wrap the MetadataAwareAspectInstanceFactory with a decorator
    // so that it will only instantiate once.
    MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
            new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);

    List<Advisor> advisors = new ArrayList<>();
    for (Method method : getAdvisorMethods(aspectClass)) {
        Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName);
        if (advisor != null) { // //短路操作，获取到注解就返回，即一个方法上只获取一个注解，按照获取顺序
            advisors.add(advisor);
        }
    }

    // If it's a per target aspect, emit the dummy instantiating aspect.
    if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
        Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
        advisors.add(0, instantiationAdvisor);
    }

    // 引介的增强器
    for (Field field : aspectClass.getDeclaredFields()) {
        Advisor advisor = getDeclareParentsAdvisor(field);
        if (advisor != null) {
            advisors.add(advisor);
        }
    }

    return advisors;
}

private List<Method> getAdvisorMethods(Class<?> aspectClass) {
    final List<Method> methods = new ArrayList<>();
    ReflectionUtils.doWithMethods(aspectClass, method -> {
        // 忽略标识了@Pointcut的方法
        if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) {
            methods.add(method);
        }
    });
    methods.sort(METHOD_COMPARATOR);
    return methods;
}

public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
        int declarationOrderInAspect, String aspectName) {

    validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
    // 获取切点信息
    AspectJExpressionPointcut expressionPointcut = getPointcut(
            candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
    if (expressionPointcut == null) {
        return null;
    }
    // 根据切点信息生成增强器
    return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
            this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}

private AspectJExpressionPointcut getPointcut(Method candidateAdviceMethod, Class<?> candidateAspectClass) {
    // 获取方法上的注解
    AspectJAnnotation<?> aspectJAnnotation =
            AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
    if (aspectJAnnotation == null) {
        return null;
    }

    // 将aspectClass以及方法注解中的切面表达式封装为AspectJExpressionPointcut
    AspectJExpressionPointcut ajexp =
            new AspectJExpressionPointcut(candidateAspectClass, new String[0], new Class<?>[0]);
    ajexp.setExpression(aspectJAnnotation.getPointcutExpression());
    if (this.beanFactory != null) {
        ajexp.setBeanFactory(this.beanFactory);
    }
    return ajexp;
}
:org.springframework.aop.aspectj.annotation.AbstractAspectJAdvisorFactory mark:1,2,5,6
1
2
3
4
5
6
7
8
9
10
11
12
private static final Class<?>[] ASPECTJ_ANNOTATION_CLASSES = new Class<?>[] {
        Pointcut.class, Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class};

protected static AspectJAnnotation<?> findAspectJAnnotationOnMethod(Method method) {
    for (Class<?> clazz : ASPECTJ_ANNOTATION_CLASSES) {
        AspectJAnnotation<?> foundAnnotation = findAnnotation(method, (Class<Annotation>) clazz);
        if (foundAnnotation != null) {
            return foundAnnotation;
        }
    }
    return null;
}

InstantiationModelAwarePointcutAdvisorImpl中则负责对Advice创建和维护

:org.springframework.aop.aspectj.annotation.InstantiationModelAwarePointcutAdvisorImpl mark:30,35,36
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public InstantiationModelAwarePointcutAdvisorImpl(AspectJExpressionPointcut declaredPointcut,
        Method aspectJAdviceMethod, AspectJAdvisorFactory aspectJAdvisorFactory,
        MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {

    this.declaredPointcut = declaredPointcut;
    this.declaringClass = aspectJAdviceMethod.getDeclaringClass();
    this.methodName = aspectJAdviceMethod.getName();
    this.parameterTypes = aspectJAdviceMethod.getParameterTypes();
    this.aspectJAdviceMethod = aspectJAdviceMethod;
    this.aspectJAdvisorFactory = aspectJAdvisorFactory;
    this.aspectInstanceFactory = aspectInstanceFactory;
    this.declarationOrder = declarationOrder;
    this.aspectName = aspectName;

    if (aspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
        // Static part of the pointcut is a lazy type.
        Pointcut preInstantiationPointcut = Pointcuts.union(
                aspectInstanceFactory.getAspectMetadata().getPerClausePointcut(), this.declaredPointcut);

        // Make it dynamic: must mutate from pre-instantiation to post-instantiation state.
        // If it's not a dynamic pointcut, it may be optimized out
        // by the Spring AOP infrastructure after the first evaluation.
        this.pointcut = new PerTargetInstantiationModelPointcut(
                this.declaredPointcut, preInstantiationPointcut, aspectInstanceFactory);
        this.lazy = true;
    }else {
        // A singleton aspect.
        this.pointcut = this.declaredPointcut;
        this.lazy = false;
        this.instantiatedAdvice = instantiateAdvice(this.declaredPointcut);
    }
}

private Advice instantiateAdvice(AspectJExpressionPointcut pointcut) {
    Advice advice = this.aspectJAdvisorFactory.getAdvice(this.aspectJAdviceMethod, pointcut,
            this.aspectInstanceFactory, this.declarationOrder, this.aspectName);
    return (advice != null ? advice : EMPTY_ADVICE);
}

但是具体创建Advice的工作有回头来委托给了ReflectiveAspectJAdvisorFactory

:org.springframework.aop.aspectj.annotation.ReflectiveAspectJAdvisorFactory
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,
        MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {

    Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
    validate(candidateAspectClass);

    AspectJAnnotation<?> aspectJAnnotation =
            AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
    if (aspectJAnnotation == null) {
        return null;
    }

    // If we get here, we know we have an AspectJ method.
    // Check that it's an AspectJ-annotated class
    if (!isAspect(candidateAspectClass)) {
        throw new AopConfigException("Advice must be declared inside an aspect type: " +
                "Offending method '" + candidateAdviceMethod + "' in class [" +
                candidateAspectClass.getName() + "]");
    }

    if (logger.isDebugEnabled()) {
        logger.debug("Found AspectJ method: " + candidateAdviceMethod);
    }

    AbstractAspectJAdvice springAdvice;

    switch (aspectJAnnotation.getAnnotationType()) {
        case AtPointcut:
            if (logger.isDebugEnabled()) {
                logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");
            }
            return null;
        case AtAround:
            springAdvice = new AspectJAroundAdvice(
                    candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            break;
        case AtBefore:
            springAdvice = new AspectJMethodBeforeAdvice(
                    candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            break;
        case AtAfter:
            springAdvice = new AspectJAfterAdvice(
                    candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            break;
        case AtAfterReturning:
            springAdvice = new AspectJAfterReturningAdvice(
                    candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation();
            if (StringUtils.hasText(afterReturningAnnotation.returning())) {
                springAdvice.setReturningName(afterReturningAnnotation.returning());
            }
            break;
        case AtAfterThrowing:
            springAdvice = new AspectJAfterThrowingAdvice(
                    candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation();
            if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
                springAdvice.setThrowingName(afterThrowingAnnotation.throwing());
            }
            break;
        default:
            throw new UnsupportedOperationException(
                    "Unsupported advice type on method: " + candidateAdviceMethod);
    }

    // Now to configure the advice...
    springAdvice.setAspectName(aspectName);
    springAdvice.setDeclarationOrder(declarationOrder);
    String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);
    if (argNames != null) {
        springAdvice.setArgumentNamesFromStringArray(argNames);
    }
    springAdvice.calculateArgumentBindings();

    return springAdvice;
}
findAdvisorsThatCanApply

获取所有的Advisor之后再逐个与目标bean进行匹配，这里对引介增强器和代理增强器作了区分处理，对于代理则从类和方法两个层面进行匹配处理

:org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator mark:6
1
2
3
4
5
6
7
8
9
10
protected List<Advisor> findAdvisorsThatCanApply(
        List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {

    ProxyCreationContext.setCurrentProxiedBeanName(beanName);
    try {
        return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
    }finally {
        ProxyCreationContext.setCurrentProxiedBeanName(null);
    }
}
:org.springframework.aop.support.AopUtils mark:7,17,26,29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
    if (candidateAdvisors.isEmpty()) {
        return candidateAdvisors;
    }
    List<Advisor> eligibleAdvisors = new ArrayList<>();
    for (Advisor candidate : candidateAdvisors) { // 先处理引介的Advisor
        if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
            eligibleAdvisors.add(candidate);
        }
    }
    boolean hasIntroductions = !eligibleAdvisors.isEmpty();
    for (Advisor candidate : candidateAdvisors) {
        if (candidate instanceof IntroductionAdvisor) {
            // already processed 引介的已经处理过了
            continue;
        }
        if (canApply(candidate, clazz, hasIntroductions)) { // 非引介的处理
            eligibleAdvisors.add(candidate);
        }
    }
    return eligibleAdvisors;
}

public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
    if (advisor instanceof IntroductionAdvisor) {
        return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
    }else if (advisor instanceof PointcutAdvisor) {
        PointcutAdvisor pca = (PointcutAdvisor) advisor;
        return canApply(pca.getPointcut(), targetClass, hasIntroductions);
    }else {
        // It doesn't have a pointcut so we assume it applies.
        return true;
    }
}

public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
    Assert.notNull(pc, "Pointcut must not be null");
    if (!pc.getClassFilter().matches(targetClass)) { // 先匹配类型
        return false;
    }

    MethodMatcher methodMatcher = pc.getMethodMatcher();
    if (methodMatcher == MethodMatcher.TRUE) {
        // No need to iterate the methods if we're matching any method anyway...
        return true;
    }

    IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
    if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
        introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
    }

    Set<Class<?>> classes = new LinkedHashSet<>();
    if (!Proxy.isProxyClass(targetClass)) {
        classes.add(ClassUtils.getUserClass(targetClass));
    }
    classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));

    for (Class<?> clazz : classes) {
        Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
        for (Method method : methods) { // 匹配方法，存在一个可以
            if (introductionAwareMethodMatcher != null ?
                    introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
                    methodMatcher.matches(method, targetClass)) {
                return true;
            }
        }
    }
    return false;
}

示例 @DeclareParents

上面一直使用增强器的说法，而没有说成切面，是因为除了使用代理的方式对目标bean进行增强，还可以使用引入的方式使目标bean获取新的行为，它们的效果都相当于对目标bean实现了增强，而spring中对这两种方式统一封装成了Advisor，因此称为增强器更合适一些，下面使用@DeclareParents简单写个示例，需要注意的它都是基于接口实现的，否则会类型转换失败

  • 给目标beanTargetInterfaceImpl 引入DeclareInterface的行为，并指定引入行为的实现
:TargetInterface.java
1
2
3
4
public interface TargetInterface {

    void doSomething();
}
:TargetInterfaceImpl.java
1
2
3
4
5
6
7
public class TargetInterfaceImpl implements TargetInterface {

    @Override
    public void doSomething() {
        System.out.println("i am TargetInterfaceImpl");
    }
}
:DeclareInterface.java
1
2
3
4
public interface DeclareInterface {

    void doSomethingOther();
}
:DeclareInterfaceImpl.java
1
2
3
4
5
6
7
public class DeclareInterfaceImpl implements DeclareInterface {

    @Override
    public void doSomethingOther() {
        System.out.println("i am DeclareInterfaceImpl");
    }
}
:TestDeclareAspect.java
1
2
3
4
5
6
7
@Aspect
public class TestDeclareAspect {

    // value指定目标bean，defaultImpl指定引入实现
    @DeclareParents(value = "test.aop.*", defaultImpl = DeclareInterfaceImpl.class)
    public DeclareInterface declareInterface;
}
:bean.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans.xsd
                        http://www.springframework.org/schema/aop
                        http://www.springframework.org/schema/aop/spring-aop.xsd">

    <aop:aspectj-autoproxy />

    <bean id="targetInterface" class="test.aop.TargetInterfaceImpl" />

    <bean class="test.aop.TestDeclareAspect" />
</beans>
:App.java
1
2
3
4
5
6
7
8
9
10
public class App {
    public static void main(String[] args) {
        ClassPathXmlApplicationContext ctx = new ClassPathXmlApplicationContext("bean.xml");
        TargetInterface targetInterface = (TargetInterface) ctx.getBean("targetInterface");
        targetInterface.doSomething();

        DeclareInterface declareInterface = (DeclareInterface) targetInterface;
        declareInterface.doSomethingOther();
    }
}

createProxy

对于Proxy的创建，它委托给了ProxyFactory，可以看一下它们之间的关系，然后大概明白其实现的思路

:org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator mark:19,29,56
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
        @Nullable Object[] specificInterceptors, TargetSource targetSource) {

    if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
        AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
    }

    ProxyFactory proxyFactory = new ProxyFactory();
    proxyFactory.copyFrom(this);

    if (!proxyFactory.isProxyTargetClass()) {
        if (shouldProxyTargetClass(beanClass, beanName)) {
            proxyFactory.setProxyTargetClass(true);
        }else {
            evaluateProxyInterfaces(beanClass, proxyFactory);
        }
    }

    Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
    proxyFactory.addAdvisors(advisors);
    proxyFactory.setTargetSource(targetSource);
    customizeProxyFactory(proxyFactory);

    proxyFactory.setFrozen(this.freezeProxy);
    if (advisorsPreFiltered()) {
        proxyFactory.setPreFiltered(true);
    }

    return proxyFactory.getProxy(getProxyClassLoader());
}

protected Advisor[] buildAdvisors(@Nullable String beanName, @Nullable Object[] specificInterceptors) {
    // Handle prototypes correctly...
    Advisor[] commonInterceptors = resolveInterceptorNames();

    List<Object> allInterceptors = new ArrayList<>();
    if (specificInterceptors != null) {
        allInterceptors.addAll(Arrays.asList(specificInterceptors));
        if (commonInterceptors.length > 0) {
            if (this.applyCommonInterceptorsFirst) {
                allInterceptors.addAll(0, Arrays.asList(commonInterceptors));
            }else {
                allInterceptors.addAll(Arrays.asList(commonInterceptors));
            }
        }
    }
    if (logger.isTraceEnabled()) {
        int nrOfCommonInterceptors = commonInterceptors.length;
        int nrOfSpecificInterceptors = (specificInterceptors != null ? specificInterceptors.length : 0);
        logger.trace("Creating implicit proxy for bean '" + beanName + "' with " + nrOfCommonInterceptors +
                " common interceptors and " + nrOfSpecificInterceptors + " specific interceptors");
    }

    Advisor[] advisors = new Advisor[allInterceptors.size()];
    for (int i = 0; i < allInterceptors.size(); i++) {
        advisors[i] = this.advisorAdapterRegistry.wrap(allInterceptors.get(i));
    }
    return advisors;
}

统一封装成Advisor，然后交给ProxyFactory

:org.springframework.aop.framework.adapter.DefaultAdvisorAdapterRegistry
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public Advisor wrap(Object adviceObject) throws UnknownAdviceTypeException {
    // 如果要封装的已经是Advisor，那么不需要再处理
    if (adviceObject instanceof Advisor) {
        return (Advisor) adviceObject;
    }
    // 如果不是Advice也不是Advisor，则不支持
    if (!(adviceObject instanceof Advice)) {
        throw new UnknownAdviceTypeException(adviceObject);
    }

    Advice advice = (Advice) adviceObject;
    if (advice instanceof MethodInterceptor) {
        // MethodInterceptor使用DefaultPointcutAdvisor封装
        return new DefaultPointcutAdvisor(advice);
    }
    for (AdvisorAdapter adapter : this.adapters) {
        // 如果存在Advisor的适配器，也同样封装为DefaultPointcutAdvisor
        if (adapter.supportsAdvice(advice)) {
            return new DefaultPointcutAdvisor(advice);
        }
    }
    throw new UnknownAdviceTypeException(advice);
}

创建时根据情况有两种选择，即JdkDynamicAopProxy或者ObjenesisCglibAopProxy

:org.springframework.aop.framework.DefaultAopProxyFactory mark:2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
    if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
        Class<?> targetClass = config.getTargetClass();
        if (targetClass == null) {
            throw new AopConfigException("TargetSource cannot determine target class: " +
                    "Either an interface or a target is required for proxy creation.");
        }
        if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
            return new JdkDynamicAopProxy(config);
        }
        return new ObjenesisCglibAopProxy(config);
    }else {
        return new JdkDynamicAopProxy(config);
    }
}
JdkDynamicAopProxy

对于Jdk代理，可以以invoke作为入口进行分析，其中封装了Aop的核心逻辑，这里实现得非常巧妙，首先将上面过滤后的Advice都适配成MethodInterceptor，并组成一个拦截器链封装到ReflectiveMethodInvocation中，并由其负责调用

:org.springframework.aop.framework.JdkDynamicAopProxy mark:34,40,41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
    MethodInvocation invocation;
    Object oldProxy = null;
    boolean setProxyContext = false;

    TargetSource targetSource = this.advised.targetSource;
    Object target = null;

    try {
        if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
            return equals(args[0]); // equals方法处理
        }else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
            return hashCode(); // hashCode方法处理
        }else if (method.getDeclaringClass() == DecoratingProxy.class) {
            // There is only getDecoratedClass() declared -> dispatch to proxy config.
            return AopProxyUtils.ultimateTargetClass(this.advised);
        }else if (!this.advised.opaque && method.getDeclaringClass().isInterface()
                    && method.getDeclaringClass().isAssignableFrom(Advised.class)) {
            // isAssignableFrom
            return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
        }

        Object retVal;

        if (this.advised.exposeProxy) { // 有时候目标对象内部的自我调用将无法实施切面中的增强则需要暴露代理对象
            oldProxy = AopContext.setCurrentProxy(proxy);
            setProxyContext = true;
        }

        target = targetSource.getTarget();
        Class<?> targetClass = (target != null ? target.getClass() : null);

        // 获取目标方法的拦截器链
        List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

        if (chain.isEmpty()) { // 没有拦截器就直接调用切点方法
            Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
            retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
        }else { // 封装成ReflectiveMethodInvocation并进行链接调用
            invocation = new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
            retVal = invocation.proceed();
        }

        // Massage return value if necessary.
        Class<?> returnType = method.getReturnType();
        if (retVal != null
                && retVal == target
                && returnType != Object.class
                && returnType.isInstance(proxy)
                && !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
            // Special case: it returned "this" and the return type of the method
            // is type-compatible. Note that we can't help if the target sets
            // a reference to itself in another returned object.
            retVal = proxy;
        }else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
            throw new AopInvocationException(
                    "Null return value from advice does not match primitive return type for: " + method);
        }
        return retVal;
    }finally {
        if (target != null && !targetSource.isStatic()) {
            // Must have come from TargetSource.
            targetSource.releaseTarget(target);
        }
        if (setProxyContext) {
            // Restore old proxy.
            AopContext.setCurrentProxy(oldProxy);
        }
    }
}

MethodInterceptor调用时接受一个MethodInvocation，而ReflectiveMethodInvocation自己就是一个MethodInvocation，这样当ReflectiveMethodInvocation调用MethodInterceptor.invoke(invocation)时就可以传入自己，另外，在具体的MethodInterceptor中又可以回调ReflectiveMethodInvocation，这样就实现了一个递归调用，每次递归调用实际上就是调用下一个拦截器的invoke，配合前后拦截器中的实现，最终将前置处理、目标方法、后置处理串联在了一起

:org.aopalliance.intercept.MethodInterceptor
1
2
3
4
public interface MethodInterceptor extends Interceptor {

    Object invoke(MethodInvocation invocation) throws Throwable;
}

BeforeAdvice先调用前置处理再回调

:org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor
1
2
3
4
5
6
private final MethodBeforeAdvice advice;

public Object invoke(MethodInvocation mi) throws Throwable {
    this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis());
    return mi.proceed();
}

AfterAdvice先回调再调用后置处理

:org.springframework.aop.framework.adapter.AfterReturningAdviceInterceptor
1
2
3
4
5
6
7
private final AfterReturningAdvice advice;

public Object invoke(MethodInvocation mi) throws Throwable {
    Object retVal = mi.proceed();
    this.advice.afterReturning(retVal, mi.getMethod(), mi.getArguments(), mi.getThis());
    return retVal;
}

如上面所说，最后ReflectiveMethodInvocation中的调用实现就是一个递归调用，将拦截器链变成了一个调用链，并刚好将目标方法的调用插入到了其中

:org.springframework.aop.framework.ReflectiveMethodInvocation mark:22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public Object proceed() throws Throwable {
    //	We start with an index of -1 and increment early.
    if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
        return invokeJoinpoint(); // 执行完所有增强器后执行目标方法
    }

    // 获取下一个要执行的拦截器
    Object interceptorOrInterceptionAdvice =
            this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);

    if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
        // 动态方法需要评估下是否匹配
        InterceptorAndDynamicMethodMatcher dm =
                (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
        Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
        if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
            return dm.interceptor.invoke(this);
        }else {
            return proceed(); // 匹配失败则递归尝试下一个拦截器
        }
    }else { // 静态方法则一定之前就匹配过，可以直接调用
        return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
    }
}
CglibAopProxy

CglibAopProxy在getProxy()中完成了Enhancer的创建和封装，其中最重要的是通过getCallbacks获取所有的拦截器，getCallbacks中考虑了很多情况，各种拦截器，不过这里对于最关心的是DynamicAdvisedInterceptor

:org.springframework.aop.framework.CglibAopProxy mark:36,72,92-99
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
public Object getProxy(@Nullable ClassLoader classLoader) {
    if (logger.isTraceEnabled()) {
        logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
    }

    try {
        Class<?> rootClass = this.advised.getTargetClass();
        Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

        Class<?> proxySuperClass = rootClass;
        if (ClassUtils.isCglibProxyClass(rootClass)) {
            proxySuperClass = rootClass.getSuperclass();
            Class<?>[] additionalInterfaces = rootClass.getInterfaces();
            for (Class<?> additionalInterface : additionalInterfaces) {
                this.advised.addInterface(additionalInterface);
            }
        }

        // Validate the class, writing log messages as necessary.
        validateClassIfNecessary(proxySuperClass, classLoader);

        // Configure CGLIB Enhancer...
        Enhancer enhancer = createEnhancer();
        if (classLoader != null) {
            enhancer.setClassLoader(classLoader);
            if (classLoader instanceof SmartClassLoader &&
                    ((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {
                enhancer.setUseCache(false);
            }
        }
        enhancer.setSuperclass(proxySuperClass);
        enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
        enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
        enhancer.setStrategy(new ClassLoaderAwareUndeclaredThrowableStrategy(classLoader));

        Callback[] callbacks = getCallbacks(rootClass); 设置拦截器
        Class<?>[] types = new Class<?>[callbacks.length];
        for (int x = 0; x < types.length; x++) {
            types[x] = callbacks[x].getClass();
        }
        // fixedInterceptorMap only populated at this point, after getCallbacks call above
        enhancer.setCallbackFilter(new ProxyCallbackFilter(
                this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
        enhancer.setCallbackTypes(types);

        // Generate the proxy class and create a proxy instance.
        return createProxyClassAndInstance(enhancer, callbacks);
    }catch (CodeGenerationException | IllegalArgumentException ex) {
        throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
                ": Common causes of this problem include using a final class or a non-visible class", ex);
    }catch (Throwable ex) {
        // TargetSource.getTarget() failed
        throw new AopConfigException("Unexpected AOP exception", ex);
    }
}

protected Object createProxyClassAndInstance(Enhancer enhancer, Callback[] callbacks) {
    enhancer.setInterceptDuringConstruction(false);
    enhancer.setCallbacks(callbacks);
    return (this.constructorArgs != null && this.constructorArgTypes != null ?
            enhancer.create(this.constructorArgTypes, this.constructorArgs) :
            enhancer.create());
}

private Callback[] getCallbacks(Class<?> rootClass) throws Exception {
    // Parameters used for optimization choices...
    boolean exposeProxy = this.advised.isExposeProxy();
    boolean isFrozen = this.advised.isFrozen();
    boolean isStatic = this.advised.getTargetSource().isStatic();

    // 将拦截器封装在DynamicAdvisedInterceptor中
    Callback aopInterceptor = new DynamicAdvisedInterceptor(this.advised);

    // Choose a "straight to target" interceptor. (used for calls that are
    // unadvised but can return this). May be required to expose the proxy.
    Callback targetInterceptor;
    if (exposeProxy) {
        targetInterceptor = (isStatic ?
                new StaticUnadvisedExposedInterceptor(this.advised.getTargetSource().getTarget()) :
                new DynamicUnadvisedExposedInterceptor(this.advised.getTargetSource()));
    }else {
        targetInterceptor = (isStatic ?
                new StaticUnadvisedInterceptor(this.advised.getTargetSource().getTarget()) :
                new DynamicUnadvisedInterceptor(this.advised.getTargetSource()));
    }

    // Choose a "direct to target" dispatcher (used for
    // unadvised calls to static targets that cannot return this).
    Callback targetDispatcher = (isStatic ?
            new StaticDispatcher(this.advised.getTargetSource().getTarget()) : new SerializableNoOp());

    Callback[] mainCallbacks = new Callback[] {
            aopInterceptor,  // for normal advice
            targetInterceptor,  // invoke target without considering advice, if optimized
            new SerializableNoOp(),  // no override for methods mapped to this
            targetDispatcher, this.advisedDispatcher,
            new EqualsInterceptor(this.advised),
            new HashCodeInterceptor(this.advised)
    };

    Callback[] callbacks;

    // If the target is a static one and the advice chain is frozen,
    // then we can make some optimizations by sending the AOP calls
    // direct to the target using the fixed chain for that method.
    if (isStatic && isFrozen) {
        Method[] methods = rootClass.getMethods();
        Callback[] fixedCallbacks = new Callback[methods.length];
        this.fixedInterceptorMap = new HashMap<>(methods.length);

        // TODO: small memory optimization here (can skip creation for methods with no advice)
        for (int x = 0; x < methods.length; x++) {
            List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(methods[x], rootClass);
            fixedCallbacks[x] = new FixedChainStaticTargetInterceptor(
                    chain, this.advised.getTargetSource().getTarget(), this.advised.getTargetClass());
            this.fixedInterceptorMap.put(methods[x].toString(), x);
        }

        // Now copy both the callbacks from mainCallbacks
        // and fixedCallbacks into the callbacks array.
        callbacks = new Callback[mainCallbacks.length + fixedCallbacks.length];
        System.arraycopy(mainCallbacks, 0, callbacks, 0, mainCallbacks.length);
        System.arraycopy(fixedCallbacks, 0, callbacks, mainCallbacks.length, fixedCallbacks.length);
        this.fixedInterceptorOffset = mainCallbacks.length;
    }else {
        callbacks = mainCallbacks;
    }
    return callbacks;
}

DynamicAdvisedInterceptor中的实现思路与上面分析JDK代理时类似，即获取拦截器链然后进行递归调用，其调用逻辑封装在CglibMethodInvocation中，其实也是复用了ReflectiveMethodInvocation的proceed()

:org.springframework.aop.framework.DynamicAdvisedInterceptor mark:17,23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
    Object oldProxy = null;
    boolean setProxyContext = false;
    Object target = null;
    TargetSource targetSource = this.advised.getTargetSource();
    try {
        if (this.advised.exposeProxy) {
            // Make invocation available if necessary.
            oldProxy = AopContext.setCurrentProxy(proxy);
            setProxyContext = true;
        }
        // Get as late as possible to minimize the time we "own" the target, in case it comes from a pool...
        target = targetSource.getTarget();
        Class<?> targetClass = (target != null ? target.getClass() : null);

        // 获取拦截器链
        List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
        Object retVal;
        if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) { // 没有拦截器直接调用目标方法
            Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
            retVal = methodProxy.invoke(target, argsToUse);
        }else { // 拦截器链调用
            retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
        }
        retVal = processReturnType(proxy, target, method, retVal);
        return retVal;
    }finally {
        if (target != null && !targetSource.isStatic()) {
            targetSource.releaseTarget(target);
        }
        if (setProxyContext) {
            // Restore old proxy.
            AopContext.setCurrentProxy(oldProxy);
        }
    }
}


参考：

  1. 《spring源码深度解析》 郝佳
  2. https://zhuanlan.zhihu.com/p/37264277?from_voters_page=true
  3. https://www.jianshu.com/p/f37148c845a9
