《spring源码深度解析》spring Jdbc（事务）

———— 5.1.3.RELEASE

words: 7.4k views: time: 37min

事务一般指数据库事务，是由一系列对系统中数据进行访问或更新操作组成的一个执行单元。主要是当发生并发操作时，事务可以起到一个隔离作用，即避免各个操作相互影响，另外为数据库提供了一个从失败中恢复到正常状态的方法，同时保证了数据库即使在异常状态下仍能保持数据的一致性。

以上可以概括成事务的四个特性，简称ACID

原子性：即事务是原子性操作，要么不执行，要么全部执行成功；
一致性：事务的执行不能破坏数据的完整性和一致性，即事务的执行没有中间状态，数据只有事务执行前的状态或执行后的状态；
隔离性：在并发场景下，事务之间应该是相互隔离的，如果不同的事务同时访问相同的数据，则每个事务应该有各自完整的数据空间，即一个事务内部的操作及使用的数据对于其它事务是隔离的。在标准SQL规范中，定义了4种事务隔离级别，spring分别提供了对应的设置：

未授权读(READ_UNCOMMITTED)：最低隔离级别，运行脏读，即一个事务可以读取别的事务还没有提交的数据；
授权读(READ_COMMITTED)：保证一个事务的修改只有提交后才能被另外一个事务读取；
可重复读(REPEATABLE_READ)：保证一个事务在处理的过程中，多次读取同一个数据时，其值都是与事务开始时一致的，即便在过程中有其它的事务进行了提交；
串行化(SERIALIZABLE)：事务被要求顺序执行；

持久性：事务一旦提交，其对数据的状态变更将是永久性的；

示例 @Transactional

这里看一个简单的示例，对于单个Jdbc数据源，使用spring中常见的声明式事务@Transactional

pom.xml

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-core</artifactId>
    <version>5.1.3.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-beans</artifactId>
    <version>5.1.3.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.1.3.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>5.1.3.RELEASE</version>
</dependency>
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.13</version>
</dependency>

User.java

public class User {

    private long id;

    private String name;

    public User(long id, String name){
        this.id = id;
        this.name = name;
    }

    // ...
}

UserService.java

public interface UserService {

    void save(User user);
}

在目标方法上添加事务注解@Transactional

UserServiceImpl.java

public class UserServiceImpl implements UserService {

    private JdbcTemplate jdbcTemplate;

    public void setDataSource(DataSource dataSource){
        jdbcTemplate = new JdbcTemplate(dataSource);
    }

    @Override
    @Transactional
    public void save(User user) {
        jdbcTemplate.update("insert into user(id, name)values(?, ?)", new Object[]{user.getId(), user.getName()});
    }
}

在配置文件中添加事务驱动开关annotation-driven

bean.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans.xsd
                        http://www.springframework.org/schema/tx
                        http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- DataSource有很多实现，这里直接使用简单DriverManagerDataSource，实际上没有缓存 -->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.mysql.cj.jdbc.Driver" />
        <property name="url" value="jdbc:mysql://192.168.141.13:3306/demo" />
        <property name="username" value="shanhm" />
        <property name="password" value="shanhm" />
    </bean>

    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>

    <tx:annotation-driven  transaction-manager="transactionManager" />

    <bean id="userService" class="test.springjdbc.UserServiceImpl">
        <property name="dataSource" ref="dataSource" />
    </bean>
</beans>

App.java

public class App {

    public static void main(String[] args) {
        ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
        UserService userService = context.getBean(UserService.class);

        User user = new User(1, "shanhm1991");
        userService.save(user);
    }
}

实现

Spring将事务管理抽象成了统一的接口PlatformTransactionManager，并提供一些具体的实现：

DataSourceTransactionManager：提供对单个javax.sql.DataSource的事务管理，主要用于Spring Jdbc、MyBatis。这种事务管理比较简单，可以直接将事务操作委托给具体的Connection或者SqlSession。
JtaTransactionManager：提供对全局事务管理的支持，比如常见的涉及到多个数据源的事务，这种场景一般涉及到多个事务，会通过设置保存点和回滚标识来解决，具体往下面看实现过程；

另外，一些第三方厂商也提供了基于spring管理器是的事务实现，比如HibernateTransactionManager等

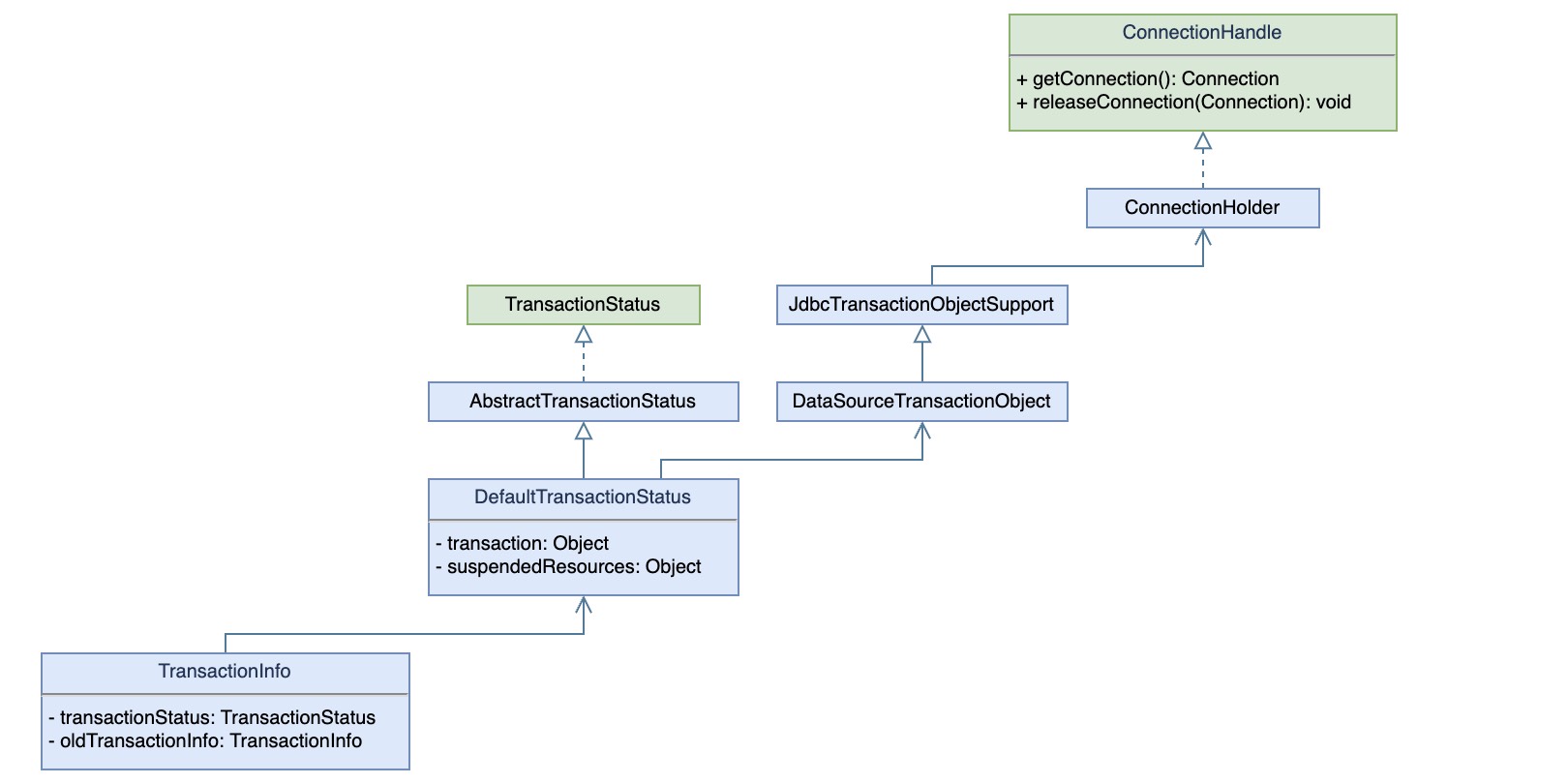

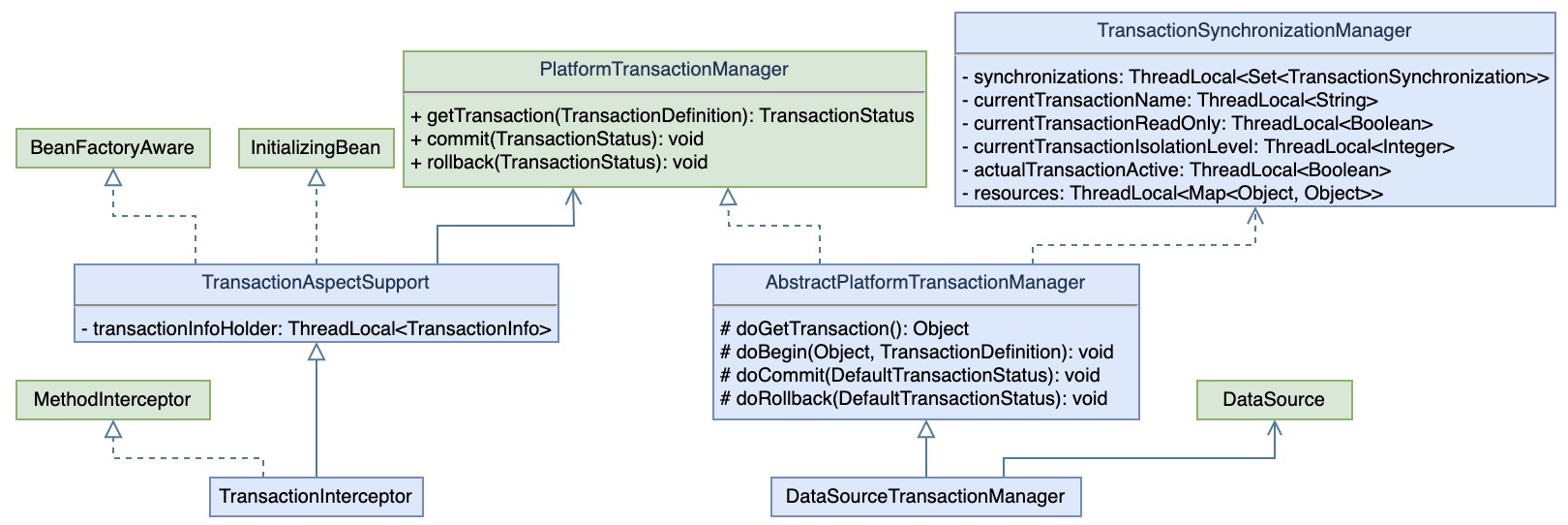

为了方便厘清下面具体的实现，这里画两个简单UMl图进行辅助：

TransactionDefinition：事务的属性定义
String getName()：事务名称
int getIsolationLevel()：事务隔离级别
int getPropagationBehavior()：事务传播行为
int getTimeout()：事务超时时间
boolean isReadOnly()：事务是否只读
TransactionStatus：事务的状态信息
isNewTransaction()：当前事务否是新事务
hasSavepoint()：当前事务是否有保存点
setRollbackOnly()：设置当前事务应该回滚
isRollbackOnly(()：返回当前事务是否应该回滚
flush()：用于刷新底层会话中的修改到数据库，一般用于刷新如Hibernate/JPA的会话，可能对如JDBC类型的事务无任何影响
isCompleted():当前事务否已经完成

1. 解析事务

根据之前经验，从自定义标签开始进行分析，首先定位到解析器AnnotationDrivenBeanDefinitionParser

org.springframework.transaction.config.TxNamespaceHandler

public void init() {
    registerBeanDefinitionParser("advice", new TxAdviceBeanDefinitionParser());
    registerBeanDefinitionParser("annotation-driven", new AnnotationDrivenBeanDefinitionParser());
    registerBeanDefinitionParser("jta-transaction-manager", new JtaTransactionManagerBeanDefinitionParser());
}

AnnotationDrivenBeanDefinitionParser根据属性mode，决定是用代理还是AspectJ方式切入事务，默认走代理方式

org.springframework.transaction.config.AnnotationDrivenBeanDefinitionParser

public BeanDefinition parse(Element element, ParserContext parserContext) {
    registerTransactionalEventListenerFactory(parserContext);
    String mode = element.getAttribute("mode");
    if ("aspectj".equals(mode)) {
        // mode="aspectj"
        registerTransactionAspect(element, parserContext);
        if (ClassUtils.isPresent("javax.transaction.Transactional", getClass().getClassLoader())) {
            registerJtaTransactionAspect(element, parserContext);
        }
    }else {
        // mode="proxy"
        AopAutoProxyConfigurer.configureAutoProxyCreator(element, parserContext);
    }
    return null;
}

走代理方式首先是检查注册几个BeanDefinition，通过特定名称TRANSACTION_ADVISOR_BEAN_NAME来检查和注册，主要是注册了
InfrastructureAdvisorAutoProxyCreator和TransactionAttributeSourceAdvisor，并且将TransactionAttributeSource和TransactionInterceptor组装到TransactionAttributeSourceAdvisor中。

org.springframework.transaction.config.AopAutoProxyConfigurer

public static void configureAutoProxyCreator(Element element, ParserContext parserContext) {

    // 检查注册InfrastructureAdvisorAutoProxyCreator
    AopNamespaceUtils.registerAutoProxyCreatorIfNecessary(parserContext, element);

    // 检查是否注册过TransactionAttributeSourceAdvisor，如果没有则进行注册和组装
    String txAdvisorBeanName = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME;
    if (!parserContext.getRegistry().containsBeanDefinition(txAdvisorBeanName)) {
        Object eleSource = parserContext.extractSource(element);

        // 注册TransactionAttributeSource
        RootBeanDefinition sourceDef = new RootBeanDefinition(
                "org.springframework.transaction.annotation.AnnotationTransactionAttributeSource");
        sourceDef.setSource(eleSource);
        sourceDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        String sourceName = parserContext.getReaderContext().registerWithGeneratedName(sourceDef);

        // 注册TransactionInterceptor
        RootBeanDefinition interceptorDef = new RootBeanDefinition(TransactionInterceptor.class);
        interceptorDef.setSource(eleSource);
        interceptorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        registerTransactionManager(element, interceptorDef);
        interceptorDef.getPropertyValues().add("transactionAttributeSource", new RuntimeBeanReference(sourceName));
        String interceptorName = parserContext.getReaderContext().registerWithGeneratedName(interceptorDef);

        // 注册TransactionAttributeSourceAdvisor
        RootBeanDefinition advisorDef = new RootBeanDefinition(BeanFactoryTransactionAttributeSourceAdvisor.class);
        advisorDef.setSource(eleSource);
        advisorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);

        // 给TransactionAttributeSourceAdvisor注入TransactionAttributeSource和TransactionInterceptor
        advisorDef.getPropertyValues().add("transactionAttributeSource", new RuntimeBeanReference(sourceName));
        advisorDef.getPropertyValues().add("adviceBeanName", interceptorName);
        if (element.hasAttribute("order")) {
            advisorDef.getPropertyValues().add("order", element.getAttribute("order"));
        }
        parserContext.getRegistry().registerBeanDefinition(txAdvisorBeanName, advisorDef);

        // 将上面三个bean定义用TRANSACTION_ADVISOR_BEAN_NAME声明，下一次检查将检测到已注册
        CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(element.getTagName(), eleSource);
        compositeDef.addNestedComponent(new BeanComponentDefinition(sourceDef, sourceName));
        compositeDef.addNestedComponent(new BeanComponentDefinition(interceptorDef, interceptorName));
        compositeDef.addNestedComponent(new BeanComponentDefinition(advisorDef, txAdvisorBeanName));
        parserContext.registerComponent(compositeDef);
    }
}

InfrastructureAdvisorAutoProxyCreator

InfrastructureAdvisorAutoProxyCreator实现了InstantiationAwareBeanPostProcessor，也就是在bean完成初始化，属性注入之前，它可以进行处理，这里的处理是：如果能找到匹配的增强器，则创建对应的代理，并用代理代替原有的bean

org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator

public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
    if (bean != null) {
        Object cacheKey = getCacheKey(bean.getClass(), beanName);
        if (!this.earlyProxyReferences.contains(cacheKey)) {
            return wrapIfNecessary(bean, beanName, cacheKey);
        }
    }
    return bean;
}

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
    // 如果已经处理过，则忽略
    if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
        return bean;
    }
    if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
        return bean;
    }
    // 如果是内置类，或者不需要代理，则忽略
    if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
        this.advisedBeans.put(cacheKey, Boolean.FALSE);
        return bean;
    }

    // 找出适合bean的增强器，创建代理
    Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
    if (specificInterceptors != DO_NOT_PROXY) {
        this.advisedBeans.put(cacheKey, Boolean.TRUE);
        Object proxy = createProxy(
                bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
        this.proxyTypes.put(cacheKey, proxy.getClass());
        return proxy;
    }

    this.advisedBeans.put(cacheKey, Boolean.FALSE);
    return bean;
}

1.1 getAdvicesAndAdvisorsForBean

寻找匹配增强器即，首先获取所有的候选增强器，然后进行匹配

org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator

protected Object[] getAdvicesAndAdvisorsForBean(
        Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {

    List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
    if (advisors.isEmpty()) {
        return DO_NOT_PROXY;
    }
    return advisors.toArray();
}

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
    List<Advisor> candidateAdvisors = findCandidateAdvisors();
    List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
    extendAdvisors(eligibleAdvisors);
    if (!eligibleAdvisors.isEmpty()) {
        eligibleAdvisors = sortAdvisors(eligibleAdvisors);
    }
    return eligibleAdvisors;
}

1.1.1. findCandidateAdvisors

找出所有Advisor的定义，并进行实例化和保存

org.springframework.aop.framework.autoproxy.BeanFactoryAdvisorRetrievalHelper

public List<Advisor> findAdvisorBeans() {
    // Determine list of advisor bean names, if not cached already.
    String[] advisorNames = this.cachedAdvisorBeanNames;
    if (advisorNames == null) {
        // 找出容器中所有Advisor对应的beanName
        advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
                this.beanFactory, Advisor.class, true, false);
        this.cachedAdvisorBeanNames = advisorNames;
    }
    if (advisorNames.length == 0) {
        return new ArrayList<>();
    }

    List<Advisor> advisors = new ArrayList<>();
    for (String name : advisorNames) {
        if (isEligibleBean(name)) {
            if (this.beanFactory.isCurrentlyInCreation(name)) {
                if (logger.isTraceEnabled()) {
                    logger.trace("Skipping currently created advisor '" + name + "'");
                }
            }else {
                try {
                    advisors.add(this.beanFactory.getBean(name, Advisor.class));
                }catch (BeanCreationException ex) {
                    Throwable rootCause = ex.getMostSpecificCause();
                    if (rootCause instanceof BeanCurrentlyInCreationException) {
                        BeanCreationException bce = (BeanCreationException) rootCause;
                        String bceBeanName = bce.getBeanName();
                        if (bceBeanName != null && this.beanFactory.isCurrentlyInCreation(bceBeanName)) {
                            if (logger.isTraceEnabled()) {
                                logger.trace("Skipping advisor '" + name +
                                        "' with dependency on currently created bean: " + ex.getMessage());
                            }
                            // Ignore: indicates a reference back to the bean we're trying to advise.
                            // We want to find advisors other than the currently created bean itself.
                            continue;
                        }
                    }
                    throw ex;
                }
            }
        }
    }
    return advisors;
}

1.1.2. findAdvisorsThatCanApply

逐个匹配筛选，并区分引介增强器

org.springframework.aop.support.AopUtils

public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
    if (candidateAdvisors.isEmpty()) {
        return candidateAdvisors;
    }
    List<Advisor> eligibleAdvisors = new ArrayList<>();
    // 首先处理引介增强器
    for (Advisor candidate : candidateAdvisors) {
        if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
            eligibleAdvisors.add(candidate);
        }
    }
    boolean hasIntroductions = !eligibleAdvisors.isEmpty();
    for (Advisor candidate : candidateAdvisors) {
        if (candidate instanceof IntroductionAdvisor) {
            // 引介增强器上面已经处理过，直接忽略
            continue;
        }
        if (canApply(candidate, clazz, hasIntroductions)) {
            eligibleAdvisors.add(candidate);
        }
    }
    return eligibleAdvisors;
}

其中对PointcutAdvisor类型的筛选，就是上面注册的BeanFactoryTransactionAttributeSourceAdvisor，其getPointcut()返回的是一个匿名内部类TransactionAttributeSourcePointcut，并且在getTransactionAttributeSource实现中返回了上面在BeanFactoryTransactionAttributeSourceAdvisor中注入的TransactionInterceptor

org.springframework.aop.support.AopUtils

public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
    if (advisor instanceof IntroductionAdvisor) {
        return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
    }else if (advisor instanceof PointcutAdvisor) {
        // pca即上面注册的TransactionAttributeSourceAdvisor，getPointcut返回TransactionAttributeSourcePointcut
        PointcutAdvisor pca = (PointcutAdvisor) advisor;
        return canApply(pca.getPointcut(), targetClass, hasIntroductions);
    }else {
        // It doesn't have a pointcut so we assume it applies.
        return true;
    }
}

// pc即TransactionAttributeSourcePointcut
public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
    Assert.notNull(pc, "Pointcut must not be null");
    if (!pc.getClassFilter().matches(targetClass)) {
        return false;
    }

    MethodMatcher methodMatcher = pc.getMethodMatcher(); // return this; 返回自己
    if (methodMatcher == MethodMatcher.TRUE) {
        return true; // 匹配任意方法
    }

    IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
    if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
        introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
    }

    Set<Class<?>> classes = new LinkedHashSet<>();
    if (!Proxy.isProxyClass(targetClass)) { // 如果是cglib代理，则获取其父类，因为它是基于继承实现的
        classes.add(ClassUtils.getUserClass(targetClass));
    }

    classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass)); // 获取目标类实现的所有接口

    // 遍历目标类及其实现的接口中所有方法，只要有一个可以匹配，就返回true
    for (Class<?> clazz : classes) {
        Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
        for (Method method : methods) {
            if (introductionAwareMethodMatcher != null ? // 匹配方式 区分是否是引介增强器
                    introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
                    methodMatcher.matches(method, targetClass)) {
                return true;
            }
        }
    }
    return false;
}

事实上，确认目标class是否匹配增强器，就是看是否可以从目标类，或者目标类的public方法，或者目标类实现的接口，或者目标类实现的接口的方法上提取到事务属性

org.springframework.transaction.interceptor.TransactionAttributeSourcePointcut

public boolean matches(Method method, Class<?> targetClass) {
    if (TransactionalProxy.class.isAssignableFrom(targetClass) ||
        PlatformTransactionManager.class.isAssignableFrom(targetClass) ||
        PersistenceExceptionTranslator.class.isAssignableFrom(targetClass)) {
        return false;
    }
    TransactionAttributeSource tas = getTransactionAttributeSource();
    return (tas == null || tas.getTransactionAttribute(method, targetClass) != null);
}

org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource

public TransactionAttribute getTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
    if (method.getDeclaringClass() == Object.class) {
        return null;
    }

    TransactionAttribute cached = this.attributeCache.get(cacheKey);
    if (cached != null) { // 尝试获取缓存
        if (cached == NULL_TRANSACTION_ATTRIBUTE) {
            return null;
        }else {
            return cached;
        }
    }else { // 解析并存入缓存
        TransactionAttribute txAttr = computeTransactionAttribute(method, targetClass);
        if (txAttr == null) {
            this.attributeCache.put(cacheKey, NULL_TRANSACTION_ATTRIBUTE);
        }else {
            String methodIdentification = ClassUtils.getQualifiedMethodName(method, targetClass);
            if (txAttr instanceof DefaultTransactionAttribute) {
                ((DefaultTransactionAttribute) txAttr).setDescriptor(methodIdentification);
            }
            if (logger.isTraceEnabled()) {
                logger.trace("Adding transactional method '"
                        + methodIdentification + "' with attribute: " + txAttr);
            }
            this.attributeCache.put(cacheKey, txAttr);
        }
        return txAttr;
    }
}

protected TransactionAttribute computeTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
    // 实际就是只对public方法进行处理，allowPublicMethodsOnly在AnnotationTransactionAttributeSource构造时传的true
    if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
        return null;
    }

    // specificMethod代表实现类中的方法
    Method specificMethod = AopUtils.getMostSpecificMethod(method, targetClass);

    // 先从目标方法上获取事务属性
    TransactionAttribute txAttr = findTransactionAttribute(specificMethod);
    if (txAttr != null) {
        return txAttr;
    }

    // 再尝试从目标类上面获取事务属性
    txAttr = findTransactionAttribute(specificMethod.getDeclaringClass());
    if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
        return txAttr;
    }

    if (specificMethod != method) {
        // 再尝试从接口方法上获取
        txAttr = findTransactionAttribute(method);
        if (txAttr != null) {
            return txAttr;
        }
        // 再尝试从接口类上获取
        txAttr = findTransactionAttribute(method.getDeclaringClass());
        if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
            return txAttr;
        }
    }
    return null;
}

最终对于事务属性的提取则委托给了SpringTransactionAnnotationParser

org.springframework.transaction.annotation.SpringTransactionAnnotationParser

protected TransactionAttribute parseTransactionAnnotation(AnnotationAttributes attributes) {
    RuleBasedTransactionAttribute rbta = new RuleBasedTransactionAttribute();

    Propagation propagation = attributes.getEnum("propagation");
    rbta.setPropagationBehavior(propagation.value());
    Isolation isolation = attributes.getEnum("isolation");
    rbta.setIsolationLevel(isolation.value());
    rbta.setTimeout(attributes.getNumber("timeout").intValue());
    rbta.setReadOnly(attributes.getBoolean("readOnly"));
    rbta.setQualifier(attributes.getString("value"));

    List<RollbackRuleAttribute> rollbackRules = new ArrayList<>();
    for (Class<?> rbRule : attributes.getClassArray("rollbackFor")) {
        rollbackRules.add(new RollbackRuleAttribute(rbRule));
    }
    for (String rbRule : attributes.getStringArray("rollbackForClassName")) {
        rollbackRules.add(new RollbackRuleAttribute(rbRule));
    }
    for (Class<?> rbRule : attributes.getClassArray("noRollbackFor")) {
        rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
    }
    for (String rbRule : attributes.getStringArray("noRollbackForClassName")) {
        rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
    }
    rbta.setRollbackRules(rollbackRules);
    return rbta;
}

1.2. createProxy

参考之前的笔记：[spring. Aop]，上面注册的BeanFactoryTransactionAttributeSourceAdvisor作为Advisor的实现，最终创建代理时会获取所有对应的Advisor，并获取其中的Advice适配成MethodInterceptor，然后组织成一个调用链。而这里getAdvice()返回的实际就是上面注入的TransactionInterceptor，而且它已经是一个MethodInterceptor

org.springframework.aop.support.AbstractBeanFactoryPointcutAdvisor

public Advice getAdvice() {
    Advice advice = this.advice;
    if (advice != null) {
        return advice;
    }

    // adviceBeanName 就是上面一开始注入的TransactionInterceptor
    Assert.state(this.adviceBeanName != null, "'adviceBeanName' must be specified");
    Assert.state(this.beanFactory != null, "BeanFactory must be set to resolve 'adviceBeanName'");

    if (this.beanFactory.isSingleton(this.adviceBeanName)) {
        advice = this.beanFactory.getBean(this.adviceBeanName, Advice.class);
        this.advice = advice;
        return advice;
    }else {
        synchronized (this.adviceMonitor) {
            advice = this.advice;
            if (advice == null) {
                advice = this.beanFactory.getBean(this.adviceBeanName, Advice.class);
                this.advice = advice;
            }
            return advice;
        }
    }
}

2. 执行事务 TransactionInterceptor

对于声明式事务的处理主要有以下几个步骤：

获取事务属性
获取TransactionManager
创建事务
在目标方法执行前获取事务并收集事务信息TransactionInfo
执行目标方法
异常回滚处理
提交事务前的事务信息清除
提交事务

org.springframework.transaction.interceptor.TransactionAspectSupport

protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
        final InvocationCallback invocation) throws Throwable {

    // 获取事务属性
    TransactionAttributeSource tas = getTransactionAttributeSource();
    final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);

    // 获取TransactionManager
    final PlatformTransactionManager tm = determineTransactionManager(txAttr);

    // 获取方法唯一标识
    final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);

    // 声明式事务
    if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {
        // 创建TransactionInfo
        TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);
        Object retVal = null;
        try {
            // 执行目标方法
            retVal = invocation.proceedWithInvocation();
        }catch (Throwable ex) {
            // 异常回滚
            completeTransactionAfterThrowing(txInfo, ex);
            throw ex;
        }finally {
            // 清除信息
            cleanupTransactionInfo(txInfo);
        }
        // 提交事务
        commitTransactionAfterReturning(txInfo);
        return retVal;
    }else {
        // 编程式事务
        final ThrowableHolder throwableHolder = new ThrowableHolder();
        // It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.
        try {
            Object result = ((CallbackPreferringPlatformTransactionManager) tm).execute(txAttr, status -> {
                TransactionInfo txInfo = prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
                try {
                    return invocation.proceedWithInvocation();
                }catch (Throwable ex) {
                    if (txAttr.rollbackOn(ex)) {
                        // A RuntimeException: will lead to a rollback.
                        if (ex instanceof RuntimeException) {
                            throw (RuntimeException) ex;
                        }else {
                            throw new ThrowableHolderException(ex);
                        }
                    }else {
                        // A normal return value: will lead to a commit.
                        throwableHolder.throwable = ex;
                        return null;
                    }
                }finally {
                    cleanupTransactionInfo(txInfo);
                }
            });

            // Check result state: It might indicate a Throwable to rethrow.
            if (throwableHolder.throwable != null) {
                throw throwableHolder.throwable;
            }
            return result;
        }catch (ThrowableHolderException ex) {
            throw ex.getCause();
        }catch (TransactionSystemException ex2) {
            if (throwableHolder.throwable != null) {
                logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
                ex2.initApplicationException(throwableHolder.throwable);
            }
            throw ex2;
        }catch (Throwable ex2) {
            if (throwableHolder.throwable != null) {
                logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
            }
            throw ex2;
        }
    }
}

2.1. determineTransactionManager

对于事务属性，前面解析时已经保存好了，不再赘述，这里看一下TransactionManager的获取

org.springframework.transaction.interceptor.TransactionAspectSupport

//Determine the specific transaction manager to use for the given transaction.
@Nullable
protected PlatformTransactionManager determineTransactionManager(@Nullable TransactionAttribute txAttr) {
    // Do not attempt to lookup tx manager if no tx attributes are set
    if (txAttr == null || this.beanFactory == null) {
        return getTransactionManager();
    }

    String qualifier = txAttr.getQualifier();
    if (StringUtils.hasText(qualifier)) { // 获取事务本身，即@Transactional指定的TransactionManager
        return determineQualifiedTransactionManager(this.beanFactory, qualifier);
    }else if (StringUtils.hasText(this.transactionManagerBeanName)) { // 获取annotation-driven指定的，如示例
        return determineQualifiedTransactionManager(this.beanFactory, this.transactionManagerBeanName);
    }else { // 前面两个都没有指定，则自己设置一个默认的
        PlatformTransactionManager defaultTransactionManager = getTransactionManager();
        if (defaultTransactionManager == null) {
            defaultTransactionManager = this.transactionManagerCache.get(DEFAULT_TRANSACTION_MANAGER_KEY);
            if (defaultTransactionManager == null) {
                defaultTransactionManager = this.beanFactory.getBean(PlatformTransactionManager.class);
                this.transactionManagerCache.putIfAbsent(
                        DEFAULT_TRANSACTION_MANAGER_KEY, defaultTransactionManager);
            }
        }
        return defaultTransactionManager;
    }
}

2.2. createTransactionIfNecessary

创建事务主要分为两步，即获取事务和构建事务信息

org.springframework.transaction.interceptor.TransactionAspectSupport

protected TransactionInfo createTransactionIfNecessary(@Nullable PlatformTransactionManager tm,
    @Nullable TransactionAttribute txAttr, final String joinpointIdentification) {

    // If no name specified, apply method identification as transaction name.
    if (txAttr != null && txAttr.getName() == null) {
        txAttr = new DelegatingTransactionAttribute(txAttr) {
            @Override
            public String getName() {
                return joinpointIdentification;
            }
        };
    }

    TransactionStatus status = null;
    if (txAttr != null) {
        if (tm != null) {
            status = tm.getTransaction(txAttr);
        }else {
            if (logger.isDebugEnabled()) {
                logger.debug("Skipping transactional joinpoint [" + joinpointIdentification +
                        "] because no transaction manager has been configured");
            }
        }
    }
    return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
}

2.2.1. getTransaction

具体的获取事务又分成了以下几个步骤

获取事务
如果当前线程存在事务，则转向嵌套事务处理
事务超时设置验证
事务propagationBehavior属性的设置验证
构建DefaultTransactionStatus
完善transaction

org.springframework.transaction.support.AbstractPlatformTransactionManager

public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition) throws TransactionException {

    Object transaction = doGetTransaction();

    boolean debugEnabled = logger.isDebugEnabled();

    if (definition == null) {
        // Use defaults if no transaction definition given.
        definition = new DefaultTransactionDefinition();
    }

    // 判断当前线程是否存在事务：存在ConnectionHolder并且其transactionActive不为空
    if (isExistingTransaction(transaction)) {
        return handleExistingTransaction(definition, transaction, debugEnabled);
    }

    // 事务超时校验
    if (definition.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
        throw new InvalidTimeoutException("Invalid transaction timeout", definition.getTimeout());
    }

    // 没有存在的事务，但是propagationBehavior却声明为PROPAGATION_MANDATORY，则异常
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
        throw new IllegalTransactionStateException(
            "No existing transaction found for transaction marked with propagation 'mandatory'");
    }else if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED
        || definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW
        || definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
        // PROPAGATION_REQUIRED PROPAGATION_REQUIRES_NEW PROPAGATION_NESTED 都需要创建事务
        SuspendedResourcesHolder suspendedResources = suspend(null);
        if (debugEnabled) {
            logger.debug("Creating new transaction with name [" + definition.getName() + "]: " + definition);
        }
        try {
            boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
            DefaultTransactionStatus status = newTransactionStatus(
                    definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
            // 构造transaction，包括设置ConnectionHolder、隔离级别、timeout，如果是新连接，则绑定到当前线程
            doBegin(transaction, definition);
            // 同步事务设置，针对当前前程
            prepareSynchronization(status, definition);
            return status;
        }catch (RuntimeException | Error ex) {
            resume(null, suspendedResources);
            throw ex;
        }
    }else {
        // Create "empty" transaction: no actual transaction, but potentially synchronization.
        if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
        logger.warn("Custom isolation level specified but no actual transaction initiated; " +
            "isolation level will effectively be ignored: " + definition);
        }
        boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
        return prepareTransactionStatus(definition, null, true, newSynchronization, debugEnabled, null);
    }
}

2.2.1.1. doGetTransaction

对于JDBC事务实例的真正获取，则委托给了DataSourceTransactionManager，尝试根据当前DataSource从线程缓存中获取对应的ConnectionHolder，至于这个缓存就是TransactionSynchronizationManager.resources，然后将获取的结果封装成事务对象DataSourceTransactionObject返回

org.springframework.jdbc.datasource.DataSourceTransactionManager

protected Object doGetTransaction() {
    DataSourceTransactionObject txObject = new DataSourceTransactionObject();
    txObject.setSavepointAllowed(isNestedTransactionAllowed());
    // 获取ThreadLocal中的值，没有就是null
    ConnectionHolder conHolder =
            (ConnectionHolder) TransactionSynchronizationManager.getResource(obtainDataSource());
    txObject.setConnectionHolder(conHolder, false);
    return txObject;
}

2.2.1.2. doBegin

doBegin开始进行真正的事务创建

从DataSource获取Connection
设置Connection的隔离级别和只读标识
设置Connection为手动提交
标识当前连接已经激活事务
设置超时时间
绑定当前线程

如果上面DataSourceTransactionManager获取的事务对象中没有ConnectionHolder，则这创建一个，其实就是手动从DataSource获取一个Connection，然后用其构造一个ConnectionHolder并交给事务对象，并标记成是新创建的，接下来就是一些设置。

org.springframework.jdbc.datasource.DataSourceTransactionManager

protected void doBegin(Object transaction, TransactionDefinition definition) {
    DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
    Connection con = null;

    try {
        if (!txObject.hasConnectionHolder()  // 如果上面缓存中没有获取到，则新建一个连接
            || txObject.getConnectionHolder().isSynchronizedWithTransaction()) {
            Connection newCon = obtainDataSource().getConnection();
            if (logger.isDebugEnabled()) {
                logger.debug("Acquired Connection [" + newCon + "] for JDBC transaction");
            }
            txObject.setConnectionHolder(new ConnectionHolder(newCon), true);
        }

        txObject.getConnectionHolder().setSynchronizedWithTransaction(true);
        con = txObject.getConnectionHolder().getConnection();

        // 设置连接：con.setReadOnly以及con.setTransactionIsolation
        Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition);
        txObject.setPreviousIsolationLevel(previousIsolationLevel);

        // 设置成手动提交
        if (con.getAutoCommit()) {
            txObject.setMustRestoreAutoCommit(true);
            if (logger.isDebugEnabled()) {
                logger.debug("Switching JDBC Connection [" + con + "] to manual commit");
            }
            con.setAutoCommit(false);
        }

        prepareTransactionalConnection(con, definition); // 如果强制事务只读，则执行"SET TRANSACTION READ ONLY"
        txObject.getConnectionHolder().setTransactionActive(true); // 标识当前连接已经激活事务

        int timeout = determineTimeout(definition);
        if (timeout != TransactionDefinition.TIMEOUT_DEFAULT) {
            txObject.getConnectionHolder().setTimeoutInSeconds(timeout);
        }

        // 绑定当前线程
        if (txObject.isNewConnectionHolder()) {
            TransactionSynchronizationManager.bindResource(obtainDataSource(), txObject.getConnectionHolder());
        }
    }catch (Throwable ex) {
        if (txObject.isNewConnectionHolder()) {
            DataSourceUtils.releaseConnection(con, obtainDataSource());
            txObject.setConnectionHolder(null, false);
        }
        throw new CannotCreateTransactionException("Could not open JDBC Connection for transaction", ex);
    }
}

2.2.1.3. prepareSynchronization

将事务信息记录到当前线程中，其实就是记到各个ThreadLocal中，不过事先会将之前创建的事务对象包装成TransactionStatus

org.springframework.transaction.support.AbstractPlatformTransactionManager

protected void prepareSynchronization(DefaultTransactionStatus status, TransactionDefinition definition) {
    if (status.isNewSynchronization()) {
        TransactionSynchronizationManager.setActualTransactionActive(status.hasTransaction());
        TransactionSynchronizationManager.setCurrentTransactionIsolationLevel(
                definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT ?
                        definition.getIsolationLevel() : null);
        TransactionSynchronizationManager.setCurrentTransactionReadOnly(definition.isReadOnly());
        TransactionSynchronizationManager.setCurrentTransactionName(definition.getName());
        TransactionSynchronizationManager.initSynchronization();
    }
}

2.2.1.4. handleExistingTransaction

对于已经处于事务中的连接，则根据propagationBehavior做一些区别处理，具体定义了如下传播行为

REQUIRED：支持当前事务，如果当前没有事务，就新建一个事务。这是最常见的选择。
SUPPORTS：支持当前事务，如果当前没有事务，就以非事务方式执行。
MANDATORY：支持当前事务，如果当前没有事务，就抛出异常。
REQUIRES_NEW：新建事务，如果当前存在事务，把当前事务挂起。
NOT_SUPPORTED：以非事务方式执行操作，如果当前存在事务，就把当前事务挂起。
NEVER：以非事务方式执行，如果当前存在事务，则抛出异常。
NESTED：支持当前事务，如果当前事务存在，则执行一个嵌套事务，如果当前没有事务，就新建一个事务。

org.springframework.transaction.support.AbstractPlatformTransactionManager

private TransactionStatus handleExistingTransaction(
        TransactionDefinition definition, Object transaction, boolean debugEnabled)throws TransactionException {

    // 如果设置NEVER，则直接抛出异常
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NEVER) {
        throw new IllegalTransactionStateException(
                "Existing transaction found for transaction marked with propagation 'never'");
    }

    // 如果设置NOT_SUPPORTED，则挂起当前事务，然后直接执行
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NOT_SUPPORTED) {
        if (debugEnabled) {
            logger.debug("Suspending current transaction");
        }
        Object suspendedResources = suspend(transaction);
        boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
        return prepareTransactionStatus(
                definition, null, false, newSynchronization, debugEnabled, suspendedResources);
    }

    // 如果设置REQUIRES_NEW，则挂起当前事务，并创建新的事务执行
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW) {
        if (debugEnabled) {
            logger.debug("Suspending current transaction, creating new transaction with name [" +
                    definition.getName() + "]");
        }
        SuspendedResourcesHolder suspendedResources = suspend(transaction);
        try {
            boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
            DefaultTransactionStatus status = newTransactionStatus(
                    definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
            doBegin(transaction, definition);
            prepareSynchronization(status, definition);
            return status;
        }catch (RuntimeException | Error beginEx) {
            resumeAfterBeginException(transaction, suspendedResources, beginEx);
            throw beginEx;
        }
    }

    // 如果设置NESTED，则创建嵌套事务，不过会将保存点作为其回滚处理，
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
        if (!isNestedTransactionAllowed()) {
            throw new NestedTransactionNotSupportedException(
                    "Transaction manager does not allow nested transactions by default - " +
                    "specify 'nestedTransactionAllowed' property with value 'true'");
        }
        if (debugEnabled) {
            logger.debug("Creating nested transaction with name [" + definition.getName() + "]");
        }
        if (useSavepointForNestedTransaction()) {
            // Create savepoint within existing Spring-managed transaction,
            // through the SavepointManager API implemented by TransactionStatus.
            // Usually uses JDBC 3.0 savepoints. Never activates Spring synchronization.
            DefaultTransactionStatus status =
                    prepareTransactionStatus(definition, transaction, false, false, debugEnabled, null);
            status.createAndHoldSavepoint();
            return status;
        }else {
            // Nested transaction through nested begin and commit/rollback calls.
            // Usually only for JTA: Spring synchronization might get activated here
            // in case of a pre-existing JTA transaction.
            boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
            DefaultTransactionStatus status = newTransactionStatus(
                    definition, transaction, true, newSynchronization, debugEnabled, null);
            doBegin(transaction, definition);
            prepareSynchronization(status, definition);
            return status;
        }
    }

    // Assumably PROPAGATION_SUPPORTS or PROPAGATION_REQUIRED.
    if (debugEnabled) {
        logger.debug("Participating in existing transaction");
    }

    // 校验隔离级别和只读属性
    if (isValidateExistingTransaction()) {
        if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT) {
            Integer currentIsolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
            if (currentIsolationLevel == null || currentIsolationLevel != definition.getIsolationLevel()) {
                Constants isoConstants = DefaultTransactionDefinition.constants;
                throw new IllegalTransactionStateException("Participating transaction with definition [" +
                        definition + "] specifies isolation level which is incompatible with existing transaction: " +
                        (currentIsolationLevel != null ?
                                isoConstants.toCode(currentIsolationLevel, DefaultTransactionDefinition.PREFIX_ISOLATION) :
                                "(unknown)"));
            }
        }
        if (!definition.isReadOnly()) {
            if (TransactionSynchronizationManager.isCurrentTransactionReadOnly()) {
                throw new IllegalTransactionStateException("Participating transaction with definition [" +
                        definition + "] is not marked as read-only but existing transaction is");
            }
        }
    }
    boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
    return prepareTransactionStatus(definition, transaction, false, newSynchronization, debugEnabled, null);
}

这里的挂起就是将当前线程记录的事务信息保存下来，并重置ThreadLocal中的值

org.springframework.transaction.support.AbstractPlatformTransactionManager

protected final SuspendedResourcesHolder suspend(@Nullable Object transaction) throws TransactionException {
    if (TransactionSynchronizationManager.isSynchronizationActive()) {
        List<TransactionSynchronization> suspendedSynchronizations = doSuspendSynchronization();
        try {
            Object suspendedResources = null;
            if (transaction != null) {
                suspendedResources = doSuspend(transaction);
            }

            String name = TransactionSynchronizationManager.getCurrentTransactionName();
            TransactionSynchronizationManager.setCurrentTransactionName(null);

            boolean readOnly = TransactionSynchronizationManager.isCurrentTransactionReadOnly();
            TransactionSynchronizationManager.setCurrentTransactionReadOnly(false);

            Integer isolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
            TransactionSynchronizationManager.setCurrentTransactionIsolationLevel(null);

            boolean wasActive = TransactionSynchronizationManager.isActualTransactionActive();
            TransactionSynchronizationManager.setActualTransactionActive(false);

            return new SuspendedResourcesHolder(
                    suspendedResources, suspendedSynchronizations, name, readOnly, isolationLevel, wasActive);
        }catch (RuntimeException | Error ex) {
            // doSuspend failed - original transaction is still active...
            doResumeSynchronization(suspendedSynchronizations);
            throw ex;
        }
    }else if (transaction != null) {
        // Transaction active but no synchronization active.
        Object suspendedResources = doSuspend(transaction);
        return new SuspendedResourcesHolder(suspendedResources);
    }else {
        // Neither transaction nor synchronization active.
        return null;
    }
}

2.2.2. prepareTransactionInfo

最终将TransactionStatus再封装成TransactionInfo，只是这里不管当前方法是否应用事务，都创建一个TransactionInfo并绑定到线程变量中，后面如果事务执行失败，spring会通过TransactionInfo实例中的信息进行回滚等操作。

org.springframework.transaction.interceptor.TransactionAspectSupport

protected TransactionInfo prepareTransactionInfo(@Nullable PlatformTransactionManager tm,
        @Nullable TransactionAttribute txAttr, String joinpointIdentification,
        @Nullable TransactionStatus status) {

    TransactionInfo txInfo = new TransactionInfo(tm, txAttr, joinpointIdentification);
    if (txAttr != null) {
        // We need a transaction for this method...
        if (logger.isTraceEnabled()) {
            logger.trace("Getting transaction for [" + txInfo.getJoinpointIdentification() + "]");
        }
        // The transaction manager will flag an error if an incompatible tx already exists.
        txInfo.newTransactionStatus(status);
    }else {
        // The TransactionInfo.hasTransaction() method will return false. We created it only
        // to preserve the integrity of the ThreadLocal stack maintained in this class.
        if (logger.isTraceEnabled()) {
            logger.trace("Don't need to create transaction for [" + joinpointIdentification +
                    "]: This method isn't transactional.");
        }
    }

    // We always bind the TransactionInfo to the thread, even if we didn't create
    // a new transaction here. This guarantees that the TransactionInfo stack
    // will be managed correctly even if no transaction was created by this aspect.
    txInfo.bindToThread();
    return txInfo;
}

2.3. completeTransactionAfterThrowing

当catch到错误时，存在事务的情况下会对特定的异常回滚

org.springframework.transaction.interceptor.TransactionAspectSupport

protected void completeTransactionAfterThrowing(@Nullable TransactionInfo txInfo, Throwable ex) {
    // 首先判断当前是否存在事务
    if (txInfo != null && txInfo.getTransactionStatus() != null) {
        if (logger.isTraceEnabled()) {
            logger.trace("Completing transaction for [" + txInfo.getJoinpointIdentification() +
                    "] after exception: " + ex);
        }
        // 对特定的错误进行回滚操作
        if (txInfo.transactionAttribute != null && txInfo.transactionAttribute.rollbackOn(ex)) {
            try {
                txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus());
            }catch (TransactionSystemException ex2) {
                logger.error("Application exception overridden by rollback exception", ex);
                ex2.initApplicationException(ex);
                throw ex2;
            }catch (RuntimeException | Error ex2) {
                logger.error("Application exception overridden by rollback exception", ex);
                throw ex2;
            }
        }else {
            // We don't roll back on this exception.
            // Will still roll back if TransactionStatus.isRollbackOnly() is true.
            try {
                txInfo.getTransactionManager().commit(txInfo.getTransactionStatus());
            }catch (TransactionSystemException ex2) {
                logger.error("Application exception overridden by commit exception", ex);
                ex2.initApplicationException(ex);
                throw ex2;
            }catch (RuntimeException | Error ex2) {
                logger.error("Application exception overridden by commit exception", ex);
                throw ex2;
            }
        }
    }
}

默认只对RuntimeException和Error进行回滚操作

org.springframework.transaction.interceptor.DefaultTransactionAttribute

1
2
3

public boolean rollbackOn(Throwable ex) {
    return (ex instanceof RuntimeException || ex instanceof Error);
}

2.3.1. rollback

如果存在保存点，则回滚到保存点，不管如何封装，最终的操作都是委托给了Connection，即数据库驱动提供的实现，另外spring还提供了一个事件注册器，可以通过TransactionSynchronizationManager.registerSynchronization来注册当发生回滚或提交时需要执行的操作。

org.springframework.transaction.support.AbstractPlatformTransactionManager

public final void rollback(TransactionStatus status) throws TransactionException {
    if (status.isCompleted()) { // 如果事务已经完成，再次回滚则抛出异常
        throw new IllegalTransactionStateException(
                "Transaction is already completed - do not call commit or rollback more than once per transaction");
    }

    DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
    processRollback(defStatus, false);
}

private void processRollback(DefaultTransactionStatus status, boolean unexpected) {
    try {
        boolean unexpectedRollback = unexpected;

        try {
            triggerBeforeCompletion(status); // 触发beforeCompletion
            if (status.hasSavepoint()) { // 如果有保存点，则回退到保存点
                if (status.isDebug()) {
                    logger.debug("Rolling back transaction to savepoint");
                }
                status.rollbackToHeldSavepoint();
            }else if (status.isNewTransaction()) { // 如果当前是独立的新事务，则直接回退
                if (status.isDebug()) {
                    logger.debug("Initiating transaction rollback");
                }
                doRollback(status);
            }else {
                // 如果当前不是独立的事务，则标记状态，等到事务链执行完毕后统一回滚
                if (status.hasTransaction()) {
                    if (status.isLocalRollbackOnly() || isGlobalRollbackOnParticipationFailure()) {
                        if (status.isDebug()) {
                            logger.debug("Participating transaction failed - marking existing transaction as rollback-only");
                        }
                        doSetRollbackOnly(status); // 设置当前事务rollbackOnly=true，即后面处理时无条件回滚
                    }else {
                        if (status.isDebug()) {
                            logger.debug("Participating transaction failed - letting transaction originator decide on rollback");
                        }
                    }
                }else {
                    logger.debug("Should roll back transaction but cannot - no transaction available");
                }

                // Unexpected rollback only matters here if we're asked to fail early
                if (!isFailEarlyOnGlobalRollbackOnly()) {
                    unexpectedRollback = false;
                }
            }
        }catch (RuntimeException | Error ex) {
            triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
            throw ex;
        }

        // 激活afterCompletion
        triggerAfterCompletion(status, TransactionSynchronization.STATUS_ROLLED_BACK);

        // 清空记录的资源，并将挂起的资源恢复
        if (unexpectedRollback) {
            throw new UnexpectedRollbackException(
                    "Transaction rolled back because it has been marked as rollback-only");
        }
    }finally {
        cleanupAfterCompletion(status);
    }
}

cleanupAfterCompletion

回滚事务之后执行一些事务清理操作

org.springframework.transaction.support.AbstractPlatformTransactionManager

private void cleanupAfterCompletion(DefaultTransactionStatus status) {
    status.setCompleted(); // 设置完成状态

    // 如果当前事务是新的同步状态，需要将绑定到当前线程的事务信息清除
    if (status.isNewSynchronization()) {
        TransactionSynchronizationManager.clear();
    }

    // 如果是新事务，做一些清除工作，比如解绑DataSource，释放连接等
    if (status.isNewTransaction()) {
        doCleanupAfterCompletion(status.getTransaction());
    }

    if (status.getSuspendedResources() != null) { //恢复之前挂起的事务
        if (status.isDebug()) {
            logger.debug("Resuming suspended transaction after completion of inner transaction");
        }
        Object transaction = (status.hasTransaction() ? status.getTransaction() : null);
        resume(transaction, (SuspendedResourcesHolder) status.getSuspendedResources());
    }
}

2.4. commitTransactionAfterReturning

org.springframework.transaction.interceptor.TransactionAspectSupport

protected void commitTransactionAfterReturning(@Nullable TransactionInfo txInfo) {
    if (txInfo != null && txInfo.getTransactionStatus() != null) {
        if (logger.isTraceEnabled()) {
            logger.trace("Completing transaction for [" + txInfo.getJoinpointIdentification() + "]");
        }
        txInfo.getTransactionManager().commit(txInfo.getTransactionStatus());
    }
}

上面在分析事务回滚时，对于既没有保存点又不是新事务的事务，只是设置了一个rollbackOnly标识。即spring会对无法设置保存点的内嵌事务设置回滚标识来禁止提交，这样当外部事务提交时，如果检测到回滚标识，则由外部事务来进行整体事务的回滚。

对于内嵌事务，spring的处理方式是在内嵌事务开始之前设置保存点，一旦内嵌事务出现异常便根据保存点信息进行回滚，如果没有出现异常，内嵌事务也不会单独提交，而是事务链由最外层事务负责提交，所以如果当时事务存在保存点信息就证明它不是最外层事务。

commit

org.springframework.transaction.support.AbstractPlatformTransactionManager

public final void commit(TransactionStatus status) throws TransactionException {
    if (status.isCompleted()) {
        throw new IllegalTransactionStateException(
                "Transaction is already completed - do not call commit or rollback more than once per transaction");
    }

    // 如果事务链中设置了回滚，则不会尝试提交，直接回滚
    DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
    if (defStatus.isLocalRollbackOnly()) {
        if (defStatus.isDebug()) {
            logger.debug("Transactional code has requested rollback");
        }
        processRollback(defStatus, false);
        return;
    }

    if (!shouldCommitOnGlobalRollbackOnly() && defStatus.isGlobalRollbackOnly()) {
        if (defStatus.isDebug()) {
            logger.debug("Global transaction is marked as rollback-only but transactional code requested commit");
        }
        processRollback(defStatus, true);
        return;
    }

    processCommit(defStatus);
}

参考：

《spring源码深度解析》郝佳
《分布式一致性原理与实践》
https://www.cnblogs.com/superming/p/11419905.html
https://blog.csdn.net/weixin_30908707/article/details/98464075

Echo

articles: 117 views:

《spring源码深度解析》spring Jdbc（事务）

示例 @Transactional

实现

1. 解析事务

InfrastructureAdvisorAutoProxyCreator

1.1 getAdvicesAndAdvisorsForBean

1.1.1. findCandidateAdvisors

1.1.2. findAdvisorsThatCanApply

1.2. createProxy

2. 执行事务 TransactionInterceptor

2.1. determineTransactionManager

2.2. createTransactionIfNecessary

2.2.1. getTransaction

2.2.1.1. doGetTransaction

2.2.1.2. doBegin

2.2.1.3. prepareSynchronization

2.2.1.4. handleExistingTransaction

2.2.2. prepareTransactionInfo

2.3. completeTransactionAfterThrowing

2.3.1. rollback

2.4. commitTransactionAfterReturning
