Netty NioEventLoop

———— 4.1.72.Final
words: 1.4k    views:    time: 7min
Netty

Java Nio是对多路复用IO模型的实现，其核心在于借助操作系统提供的选择器实现对连接的监听，然后应用服务只需对就绪的连接事件进行处理即可，比如可读可写等，这样就降低了应用服务在并发场景下的线程资源压力。

Netty中设计了专门的NioEventLoop来封装对Nio事件的处理，其思路是给每个NioEventLoop初始化一个选择器Selector，然后将通道对Selector的注册转化成对NioEventLoop的注册，这样可以让每个NioEventLoop各司其职，只负责处理注册到自己身上的通道事件，从而即实现了通道事件的多线程处理，同时又避免了过程中的线程安全问题。

1. register

关于通道的注册有三种情况：

  1. 客户端SocketChannel注册；
  2. 服务端ServerSocketChannel注册；
  3. 由服务端ServerSocketChannel收到连接后创建的SocketChannel注册；

Netty将这三种情况都抽象成了统一的接口register，由MultithreadEventLoopGroup对外提供

io.netty.channel.MultithreadEventLoopGroup
1
2
3
4
@Override
public ChannelFuture register(Channel channel) {
    return next().register(channel);
}

然后在具体SingleThreadEventLoop中注册之前，会先将Channel包装成一个DefaultChannelPromise，关于Promise的作用在之前笔记[Netty Future & Promise]中已经有过介绍，至于这里的作用则是用来表示注册操作的成功或失败

io.netty.channel.SingleThreadEventLoop
1
2
3
4
5
6
7
8
9
10
11
@Override
public ChannelFuture register(Channel channel) {
    return register(new DefaultChannelPromise(channel, this)); // 使用Promise绑定channel和EventLoop
}

@Override
public ChannelFuture register(final ChannelPromise promise) {
    ObjectUtil.checkNotNull(promise, "promise");
    promise.channel().unsafe().register(this, promise); // 反过来再让channel绑定Promise和EventLoop
    return promise;
}

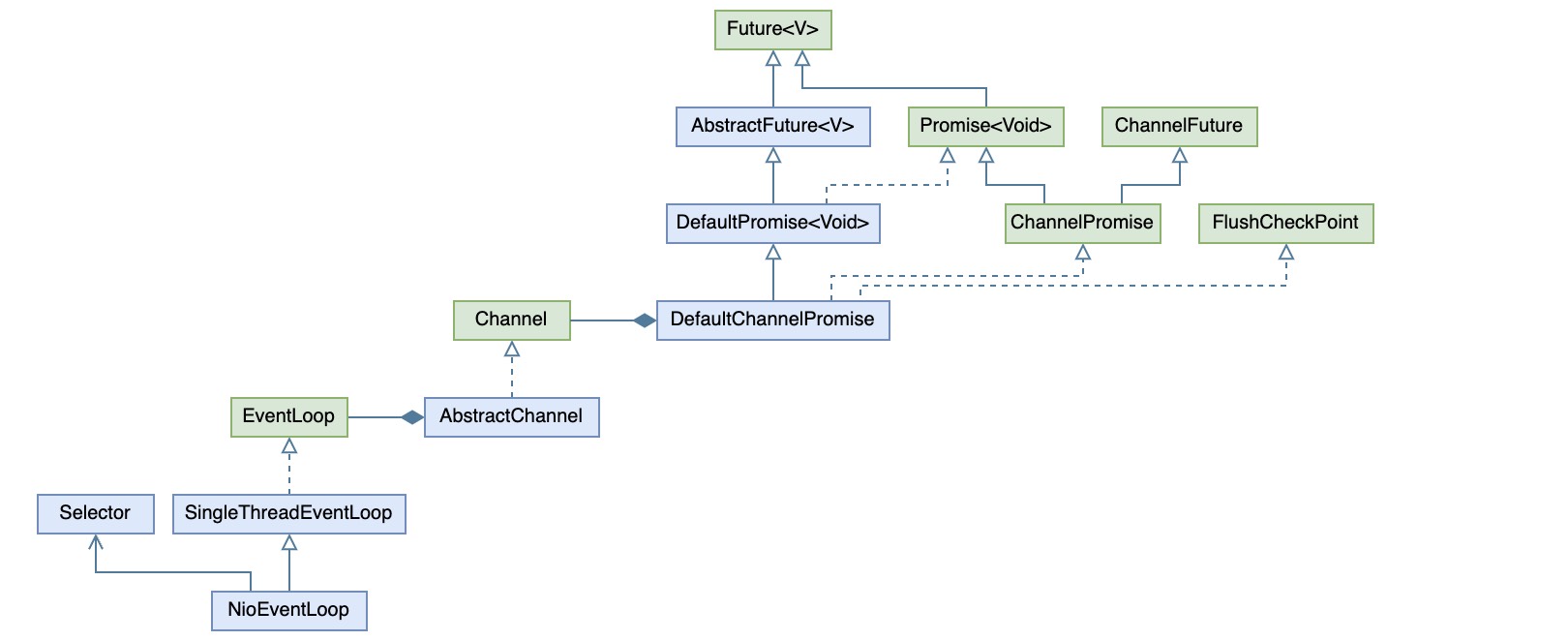

另外，这里还有一个意图就是让Promise和Channel与EventLoop相互关联，其相关类图可以如下所示：

最后真正的注册还是交给Channel自己来进行，它将注册分成了两步，第一次注册时声明对任何事件都不感兴趣

io.netty.channel.AbstractChannel#AbstractUnsafe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
@Override
public final void register(EventLoop eventLoop, final ChannelPromise promise) {
    ObjectUtil.checkNotNull(eventLoop, "eventLoop");
    if (isRegistered()) { // 不允许重复注册，通过在Channel中添加一个registered标识位来实现
        promise.setFailure(new IllegalStateException("registered to an event loop already"));
        return;
    }
    if (!isCompatible(eventLoop)) { // EventLoop是否支持处理此Channel，具体子类清楚哪种类型的EventLoop可以处理自己
        promise.setFailure(
                new IllegalStateException("incompatible event loop type: " + eventLoop.getClass().getName()));
        return;
    }

    AbstractChannel.this.eventLoop = eventLoop; // 在Channel中绑定EventLoop

    // 下面即进行注册，区别是当前线程自己操作还是交给执行器来注册
    if (eventLoop.inEventLoop()) {
        register0(promise);
    } else {
        try {
            eventLoop.execute(new Runnable() {
                @Override
                public void run() {
                    register0(promise);
                }
            });
        } catch (Throwable t) {
            logger.warn(
                    "Force-closing a channel whose registration task was not accepted by an event loop: {}",
                    AbstractChannel.this, t);
            closeForcibly();
            closeFuture.setClosed();
            safeSetFailure(promise, t);
        }
    }
}

private void register0(ChannelPromise promise) {
    try {
        // 将操作置为不可中断，并且检查通道是否仍处于连接状态
        if (!promise.setUncancellable() || !ensureOpen(promise)) {
            return;
        }

        boolean firstRegistration = neverRegistered; // 记个变量，确保下面fireChannelActive事件只在首次注册时被调用
        doRegister();
        neverRegistered = false;
        registered = true;

        pipeline.invokeHandlerAddedIfNeeded();

        safeSetSuccess(promise); // 先设置成功，如果下面注册异常了再设置成失败
        pipeline.fireChannelRegistered(); // 回调事件ChannelRegistered
        if (isActive()) { // 对客户端就是连接成功了isConnected()，服务端则是地址绑定成功了isBound()
            if (firstRegistration) {
                pipeline.fireChannelActive(); // 只在首次注册时回调事件ChannelActive
            } else if (config().isAutoRead()) { // 如果通道没有立即就绪，并且设置了autoRead()，则注册到选择器上
                beginRead();
            }
        }
    } catch (Throwable t) {
        closeForcibly();
        closeFuture.setClosed();
        safeSetFailure(promise, t);
    }
}
1.1. doRegister
io.netty.channel.nio.AbstractNioChannel#AbstractNioUnsafe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@Override
protected void doRegister() throws Exception {
    boolean selected = false;
    for (;;) {
        try {
            selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
            return;
        } catch (CancelledKeyException e) {
            if (!selected) {
                eventLoop().selectNow(); // 第一次捕获CancelledKeyException，则清掉缓存进行重试
                selected = true;
            } else {
                throw e; // 理论不应该再次出现CancelledKeyException，不知道什么原因，可能是JDK bug
            }
        }
    }
}
1.2. doBeginRead
io.netty.channel.AbstractChannel#AbstractUnsafe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@Override
public final void beginRead() {
    assertEventLoop(); // assert !registered || eventLoop.inEventLoop();
    try {
        doBeginRead();
    } catch (final Exception e) {
        invokeLater(new Runnable() {
            @Override
            public void run() {
                pipeline.fireExceptionCaught(e);
            }
        });
        close(voidPromise());
    }
}
io.netty.channel.nio.AbstractNioChannel#AbstractNioUnsafe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@Override
protected void doBeginRead() throws Exception {
    // Channel.read() or ChannelHandlerContext.read() was called
    final SelectionKey selectionKey = this.selectionKey;
    if (!selectionKey.isValid()) {
        return;
    }

    readPending = true;

    final int interestOps = selectionKey.interestOps();
    if ((interestOps & readInterestOp) == 0) {
        selectionKey.interestOps(interestOps | readInterestOp);
    }
}

2. execute

io.netty.channel.nio.NioEventLoop
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
@Override
protected void run() {
    int selectCnt = 0;
    for (;;) {
        try {
            int strategy;
            try {
                strategy = selectStrategy.calculateStrategy(selectNowSupplier, hasTasks());
                switch (strategy) {
                case SelectStrategy.CONTINUE:
                    continue;

                case SelectStrategy.BUSY_WAIT:
                    // fall-through to SELECT since the busy-wait is not supported with NIO

                case SelectStrategy.SELECT:
                    long curDeadlineNanos = nextScheduledTaskDeadlineNanos();
                    if (curDeadlineNanos == -1L) {
                        curDeadlineNanos = NONE; // nothing on the calendar
                    }
                    nextWakeupNanos.set(curDeadlineNanos);
                    try {
                        if (!hasTasks()) {
                            strategy = select(curDeadlineNanos);
                        }
                    } finally {
                        // This update is just to help block unnecessary selector wakeups
                        // so use of lazySet is ok (no race condition)
                        nextWakeupNanos.lazySet(AWAKE);
                    }
                    // fall through
                default:
                }
            } catch (IOException e) {
                // If we receive an IOException here its because the Selector is messed up. Let's rebuild
                // the selector and retry. https://github.com/netty/netty/issues/8566
                rebuildSelector0();
                selectCnt = 0;
                handleLoopException(e);
                continue;
            }

            selectCnt++;
            cancelledKeys = 0;
            needsToSelectAgain = false;
            final int ioRatio = this.ioRatio;
            boolean ranTasks;
            if (ioRatio == 100) {
                try {
                    if (strategy > 0) {
                        processSelectedKeys();
                    }
                } finally {
                    // Ensure we always run tasks.
                    ranTasks = runAllTasks();
                }
            } else if (strategy > 0) {
                final long ioStartTime = System.nanoTime();
                try {
                    processSelectedKeys();
                } finally {
                    // Ensure we always run tasks.
                    final long ioTime = System.nanoTime() - ioStartTime;
                    ranTasks = runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
                }
            } else {
                ranTasks = runAllTasks(0); // This will run the minimum number of tasks
            }

            if (ranTasks || strategy > 0) {
                if (selectCnt > MIN_PREMATURE_SELECTOR_RETURNS && logger.isDebugEnabled()) {
                    logger.debug("Selector.select() returned prematurely {} times in a row for Selector {}.",
                            selectCnt - 1, selector);
                }
                selectCnt = 0;
            } else if (unexpectedSelectorWakeup(selectCnt)) { // Unexpected wakeup (unusual case)
                selectCnt = 0;
            }
        } catch (CancelledKeyException e) {
            // Harmless exception - log anyway
            if (logger.isDebugEnabled()) {
                logger.debug(CancelledKeyException.class.getSimpleName() + " raised by a Selector {} - JDK bug?",
                        selector, e);
            }
        } catch (Error e) {
            throw e;
        } catch (Throwable t) {
            handleLoopException(t);
        } finally {
            // Always handle shutdown even if the loop processing threw an exception.
            try {
                if (isShuttingDown()) {
                    closeAll();
                    if (confirmShutdown()) {
                        return;
                    }
                }
            } catch (Error e) {
                throw e;
            } catch (Throwable t) {
                handleLoopException(t);
            }
        }
    }
}
